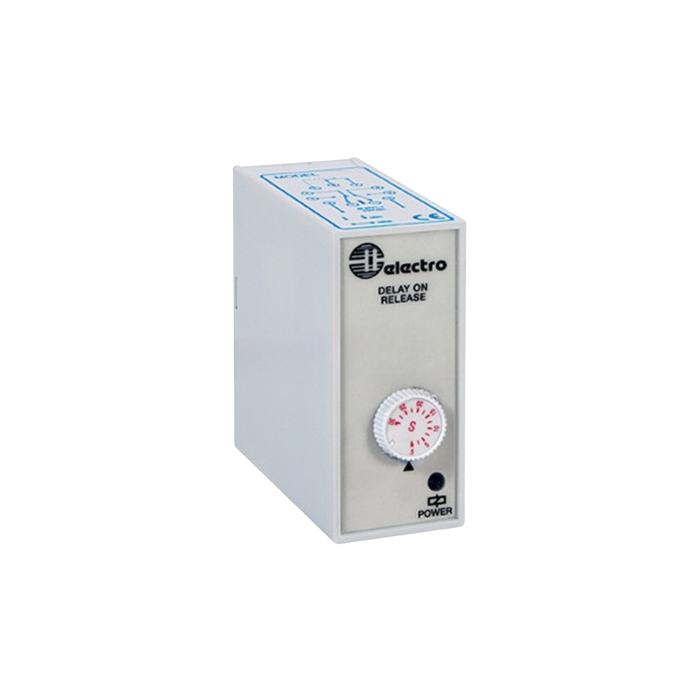

OFF DELAY TIMER, 30 MINUTES, 230VAC.

ZAR 1,098.07
Out of stock
SKU
T2D-B30M230A

Delay in removing the supply (true off delay on de-energization timer):

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • The device offers a delayed relay release upon removal of the supply.
  • Internal batteries are included with time ranges of 10 to 180 minutes; however, they must be charged for 24 hours prior to use.
  • To charge the internal retention circuit, power must be applied for 30% of the time range before being removed.
  • Use the pulse-controlled interval timer (T2M or T1I/P) in applications where supply voltage is present.

Features:

  • DPDT oscillator control time circuit with 5A output
  • 1% is the repeatable deviation.
  • LED power supply indicator on.
  • Time setting adjustable potentiometer.
  • Time interval with battery: 10–180 minutes.
  • Range of time without battery: 3 to 360 seconds.
  • Use PT11/PT13 for pulses less than 30 seconds plus 30%.

Specifications:

  • TIME RANGE: 10min, 30min, 60min,180min
  • DESCRIPTION: True off delay on de-energisation timer with battery
  • CONTACT: 10A SPDT
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
