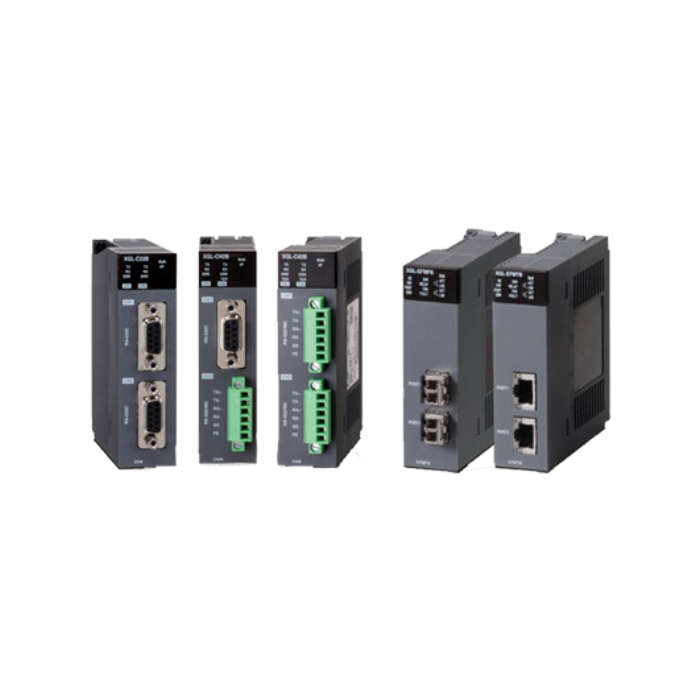

XGT Network Module, Ethernet system Open Ethernet, 10/100/1000Mbps

ZAR 0.00
Out of stock
SKU
XGL-EFMFB

Features:

  • Supports up to 1Gbps of media speed.
  • 1Ch 2Ports are supported.
  • Configuring the relay parameters and line topology.
  • Two ports (F.Optic and T.Pair).
  • The maximum communication load allowed by the server is 5,000 pps.
  • The XGL-EFMTB fiber optic module features an interchangeable connector, increased communication speed to 1Gbps, and simple maintenance.
  • Both the old and new XG5000 models are available.
  • Frame defined by the user It is easier to use thanks to UI improvements.
  • Strengthening the log function allowed for a variety of diagnoses.
  • Dedicated protocol (RAPIEnet) and open Ethernet.

Specifications:

  • Open Ethernet.
  • Baud rate: 100/1000Mbps.
  • Transmission Type: Base Band.
  • Max. extended length between nodes: 2km.
  • Max. segment length: -
  • Max. number of nodes: 30/Segments.
  • Distance between nodes: Integral times of 0.5m.
  • Max. protocol size: 1,500 Byte.
  • Access method to service zone: CSMA/CD.
  • Frame error check: CRC 16 = X15+X14+X13+.... +X2+X+1.
  • Current consumption (5V):
    • 100Mbps: 750mA.
    • 1Gbps: 740mA.
More Information
Brand LS Electric
