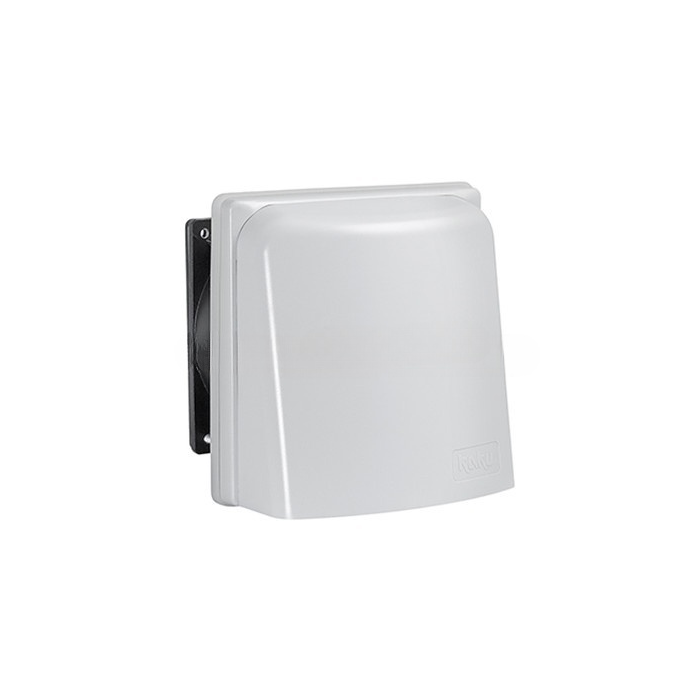

PANEL FAN/FILTER 24VDC RAIN HOOD S3
Filter/fan units with rain hood in the FU98B series:
- Complete filter fan assembly, with interior finger protection, detachable filter, mounting frame, and fan.
- It installs easily as a ventilator for electrical cabinets and panels by mounting via a panel wall or door.
Features:
- Temperature: -10°C to +85°C.
- Polyurethane foam with a permanent sealing gasket.
- Self-lubricating ball-bearing fans with shielding.
- Material: PC - (Polycarbonate) UV protected - self-extinguishing - UL94V-0, RoHS.
DC filter and fans with rain hood:
- FU98B series.
- Fan type: DC1225 series.
- SUPPLY VOLTAGE: 24 VDC.
- POWER: 6.5 WATT.
- AIR FLOW/HOUR: 113.
- Noise (BD/A): 40.
- SIZE: 3.
- Frame dimensions (mm²): 149.
- CUTOUT DIMENSIONS (MM²): 122.
| Brand | ElectroMechanica |
|---|
