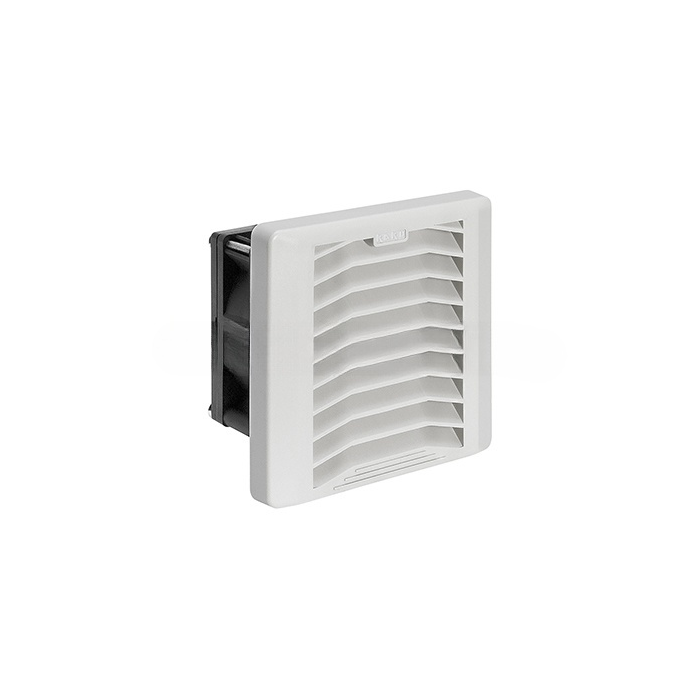

PANEL FAN/FILTER UNIT 230VAC S3
Complete filter/fan units in the FU98 series:
- Complete filter fan assembly, with interior finger protection, detachable filter, mounting frame, and fan.
- It installs easily as a ventilator for electrical cabinets and panels by mounting via a panel wall or door.
Features:
- Temperature: -10°C to +85°C.
- Polyurethane foam with a permanent sealing gasket.
- Self-lubricating ball-bearing fans with shielding.
- Material: ABS self-extinguishing - UL94V-0, RoHS.
AC filter and fans:
- FU98A series.
- Fan type: KA1238.
- SUPPLY VOLTAGE: 230 VAC.
- POWER: 21.6 WATT
- AIR FLOW/HOUR: 88.
- Noise (BD/A): 52.
- SIZE: 3.
- Frame dimensions (mm²): 149.
- CUTOUT DIMENSIONS (MM²): 122.
| Brand | ElectroMechanica |
|---|
