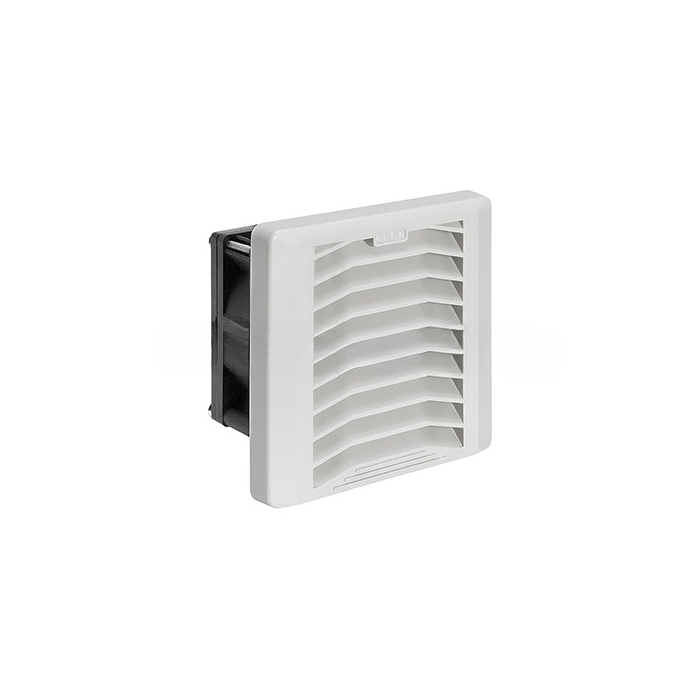

PANEL FAN/FILTER UNIT 230VAC S6
Complete filter/fan units in the FU98 series:
- A complete filter fan assembly includes the fan, mounting frame, replaceable filter, and internal finger protection.
- It installs easily as a ventilator for electrical cabinets and panels by mounting via a panel wall or door.
AC filter and fans:
- FU98A series.
- Fan type: KA2509.
- SUPPLY VOLTAGE: 230 VAC.
- POWER: 61.6 W.
- AIR FLOW/HOUR: 668.
- NOISE (Bd/A): 70.
- SIZE: 6.
- Frame dimensions (mm²): 332.
- CUTOUT DIMENSIONS (MM²): 292.
Features:
- Temperature: -10°C to +85°C.
- Polyurethane foam gasket with permanent sealing.
- Self-lubricating ball-bearing fans with shielding.
- Material: RoHS-approved ABS self-extinguishing UL94V-0.
| Brand | ElectroMechanica |
|---|
