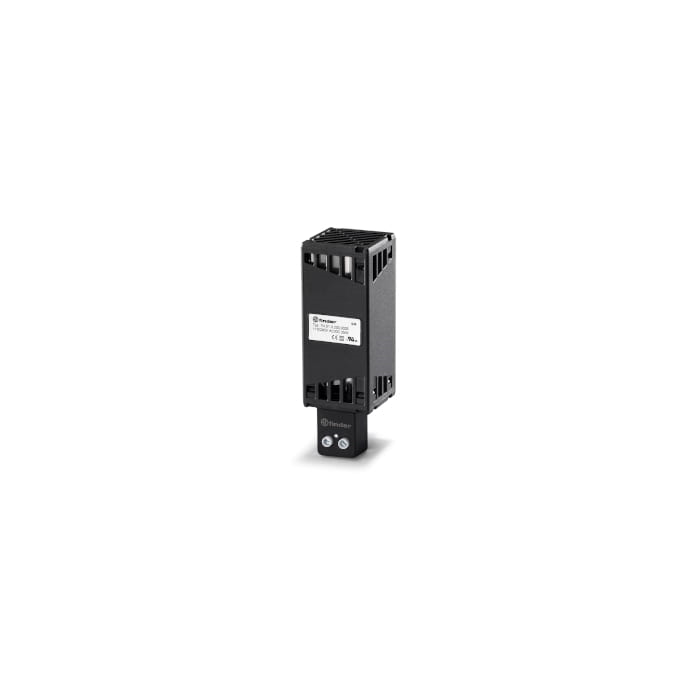

PANEL HEATERS - 25W 110…230VAC
Description:
- The purpose of the PANEL HEATER 25W 110-230VAC is to regulate the temperature of electrical cabinets.
- It has a self-extinguishing PTC element contained in a DIN rail mountable, touch-safe housing.
- This heater is perfect for keeping electrical enclosures at the right temperature and preventing dampness.
Specifications:
- Series: 7H series.
- Supply Voltage: 110 - 230V AC/DC.
- Heating Power: 25 W.
- Current: 110 mA.
- Mounting: DIN rail mounting (35 mm rail, EN 60715).
- Dimensions:
- Height: 87 mm.
- Width: 61 mm.
- Depth: 64 mm.
- Connection Type: Screw terminal connection.
- Compliance:
- IEC/EN 60335-1.
- IEC 60004-1.
- Features:
- Compact size.
- Safe to touch.
- PTC resistance that regulates itself.
- In opposition to condensation.
- This heater creates a stable internal environment, which is ideal for guaranteeing the dependability and lifespan of your electrical equipment.
| Brand | Finder |
|---|
