PANEL HEATERS - 400W 110…230VAC
Description:

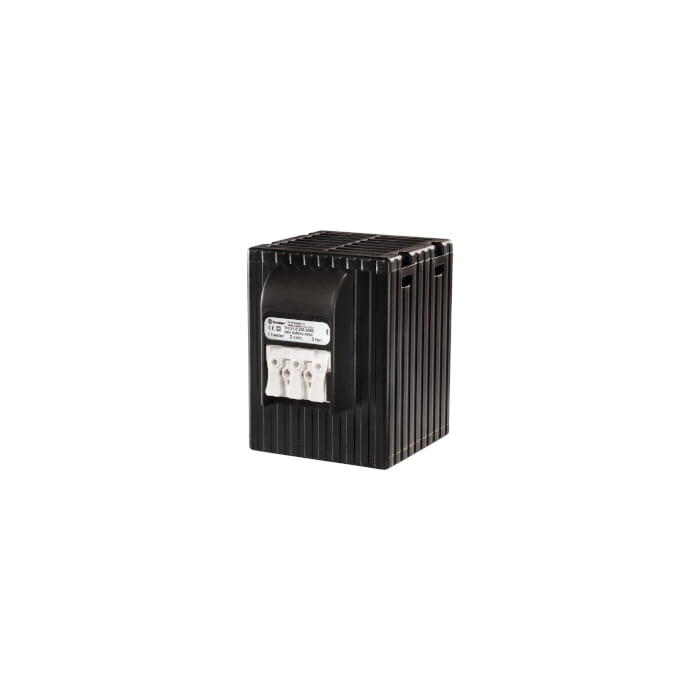

- Electrical cabinets are intended to have their temperature regulated by the Electromechanica PANEL HEATER 7H5182300400.
- It has a self-extinguishing PTC element contained in a DIN rail mountable, touch-safe housing.
- This heater is perfect for keeping electrical enclosures at the right temperature and preventing dampness.
Specifications:
- Series: 7H series.
- Supply Voltage: 110 - 230V AC/DC.
- Heating Power: 400 W.
- Current: 1700 mA.
- Mounting: DIN rail mounting.
- Dimensions:
- Height: 197 mm.
- Width: 61 mm.
- Depth: 81 mm.
- Connection Type: Screw terminal connection (250/400W heaters supplied with fast wiring screwless terminals).
- Compliance:
- IEC/EN 60335-1.
- IEC 60004-1.
- Features:
- Small dimensions.
- Safe to touch.
- PTC resistance that regulates itself.
- In opposition to condensation.
| Brand | Finder |
|---|
