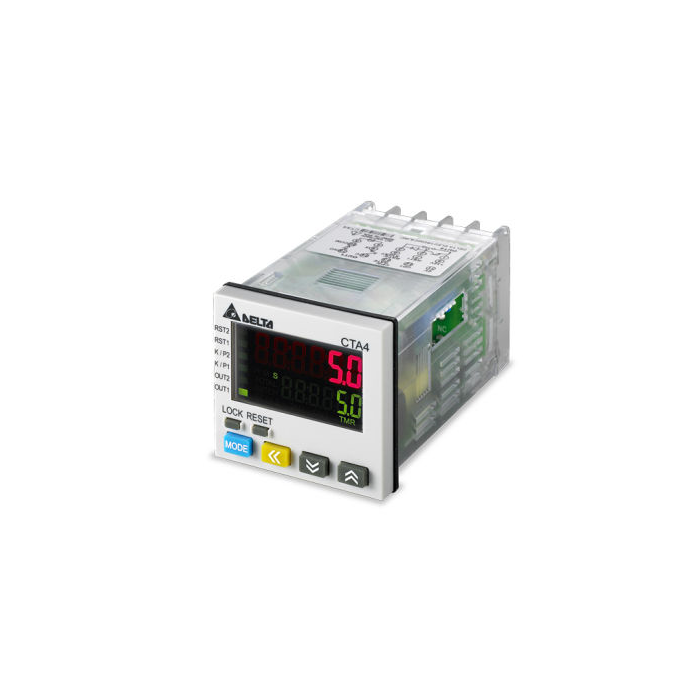

PANEL MOUNT TIMER-COUNTER-TACHOMETER RELAY 24VDC
CTA series tachometer, counter, and timer:
- The CTA 3-in-1 timer/counter/tachometer can compute frequency, speed, and event timings based on external input signals.
- The CTA unit can be used for length measurement, total counting, and batch counting.
Features in general:
- Voltage input (PNP) / Non-voltage input (NPN).
- Display: Negative transmissive LCD display with six digits and two lines.
- Results 1 and 2: Relay: maximum SPST 250 VAC 5A plus Open collector NPN transistor.
Timer / Counter:
- Timing interval: 999.999 hours - 0.01 seconds.
- Turn on, wait, wait, repeat (pulse on, pulse off, power on).
Dual counting, batch, total, and one- or two-stage counting. - Choose a speed: 1/30/200/3k/5k/10k Cps.
Tachometer:
- Measurement in Hz (can be configured to read RPM).
- SERIES: CTA series.
- SUPPLY VOLTAGE: 24 VDC.
- OUTPUT 2: Relay.
- RS458 COMMUNICATION: No.
- MOUNTING: Panel.
- DESCRIPTION: multi-function timer-counter-tachometer.
| Brand | Delta |
|---|
