P/MNT TIME/COUNT/TAC TSIST 240VAC

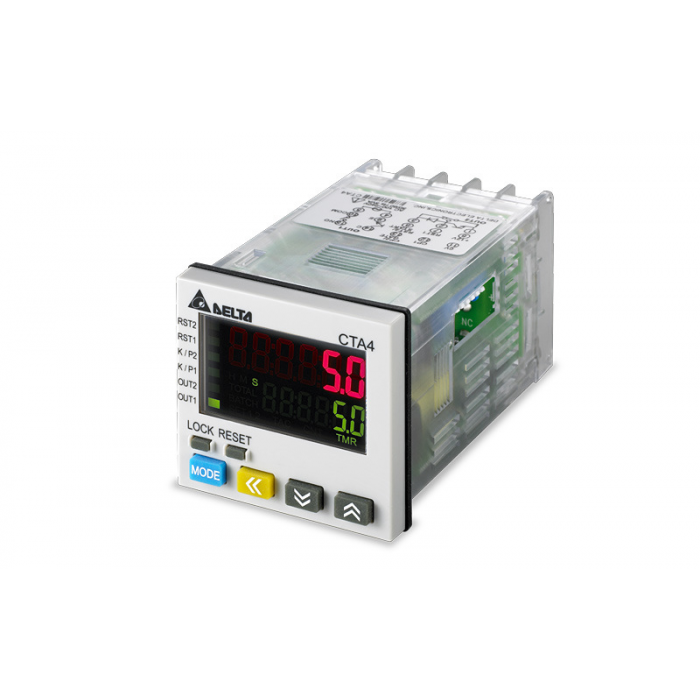

CTA series tachometer, counter, and timer:
- The CTA 3-in-1 timer/counter/tachometer can compute frequency, speed, and event timings based on external input signals.
- The CTA unit can be used for length measurement, total counting, and batch counting.
Features in general:
- Voltage input (PNP) / Non-voltage input (NPN).
- Display: Negative transmissive LCD display with six digits and two lines.
- Results 1 and 2: Relay: maximum SPST 250 VAC 5A plus Open collector NPN transistor.
Timer/ Counter:
- Timing up or down 0.01 second - 999.999 hours.
- On-delay, interval, repeat (power on, pulse on, pulse off).
- Counting or down 1 or 2 stage, batch, total, dual counting.
- Speed selection: 1/30/200/3k/5k/10k Cps.
Tachometer:
- Measurement in Hz (can be configured to read RPM)
- SERIES: CTA series
- SUPPLY VOLTAGE: 100 - 240 VAC
- OUTPUT 2: Transistor
- RS458 COMMUNICATION: No
- MOUNTING: Panel
- DESCRIPTION: multi-function timer-counter-tachometer.
| Brand | Delta |
|---|
