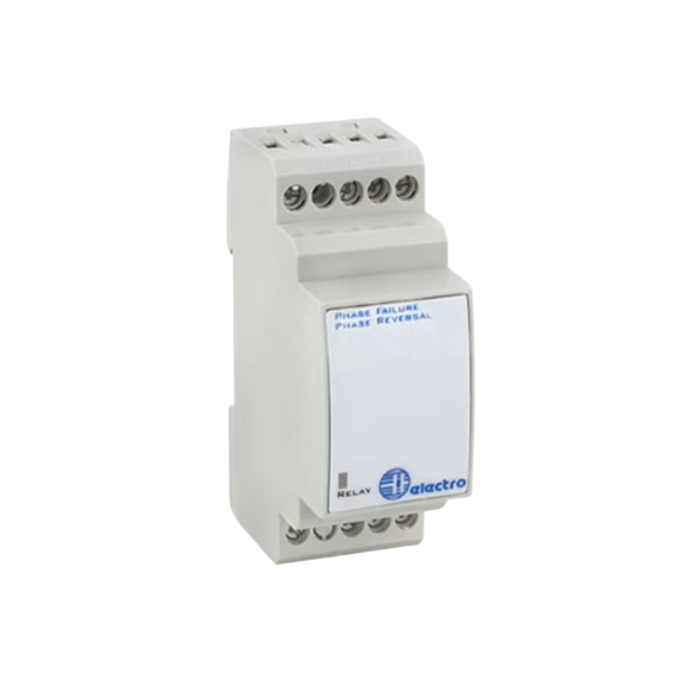

PH FAILURE AND REVERSALREL 400VAC

ZAR 934.86
Out of stock
SKU
DPF1/K400A

Phase Failure / Reversal Monitor:

  • Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
  • They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
  • Three phase supply voltage is monitored using a phase failure/reversal monitor.
  • For protection against phase reversal, phase loss, and phase imbalance, the unit is perfect.

Features:

  • Keeps an eye on their own supply.
  • Relay with 10A SPDT output.
  • Relay ON LED indicator.
  • Mountable on a modular 35.5mm DIN rail.
  • Analog microprocessor with high resolution.
  • Detects imbalance, loss, and phase reversal.

Specifications:

  • DESCRIPTION: Failure/reversal relay with adjustment
  • CONTACT: 10A SPDT
  • INPUT: Pin 1, 5 & 9, L1, L2 & L3
  • RANGE: 8% NPS voltage
  • RATED CURRENT: 10A.
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
