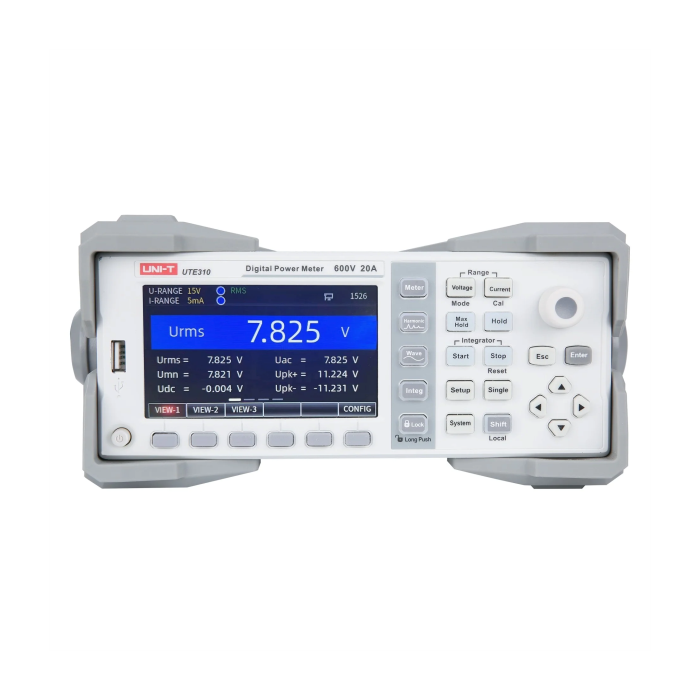

Power Meter, UTE310 600V High-Performance Digital Power Meter
UTE300 Series, Power Meter:
- The 4.3" TFT-LCD display has a resolution of 480*272.
- The measuring range for voltage and current RMS is 25 uA-50 A / 75 mV-1000 V.
- Voltage and current maximum resolution: 1 mV/0.1 uA.
- The basic precision for voltage, current, and power is 0.1%.
- Maximum power resolution: 0.001 MW.
- Numerous connectivity interfaces include USB, RS-232 or GPIB (optional), and LAN.
- The measurement bandwidth is 0.1 Hz–300 kHz.
- Sample rate: 1 MHz
- Supports both Modbus and SCPI communication protocols.
- Voltage and current waveforms, a harmonic graph, a D/A output for recording measurements, a comparator function, a current sensor input, and USB data storage.
Specifications:
- UTE300 Series, Power Meter.
- Max V Resolution 1mV.
- Max A Resolution 0.1μA.
- AC/DC Current Range 25μA–20A.
- AC/DC Voltage Range 75mV–600V.
- Harmonic Measurement 1–50th.
- Measuring Bandwidth 0.1Hz–300kHz.
- Watts Range 75mW–1200W.
- Max A Resolution 0.1μA.
- Display Size (in) 4.3in.
- Touchscreen No.
- Warranty 3 years.
- Product Dimensions (L x W x H) 13 in x 5 in x 11 in.
- Product Weight 7 lb.
- Certifications CE.
| SKU | UTE310 |
|---|---|
| Brand | UNI-T |
