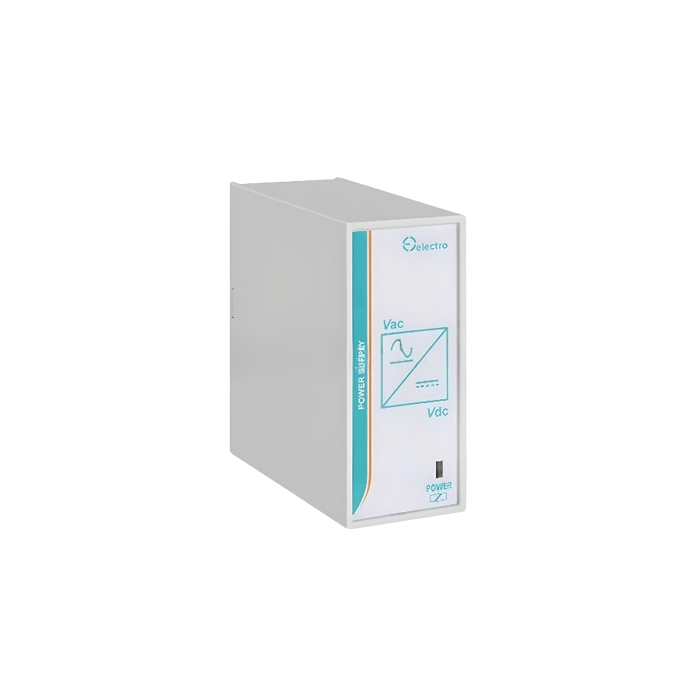

POWER SUPPLY UNIT 230VAC/24VDC
Unit of Power Supply:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Safeguard against overload.
- Protection against short circuits.
- LED power supply ON.
- Shutdown due to overheating.
- Dependable supply with little ripple effect.
- Gives an AC input source a controlled DC output.
Overload/short circuit protection:
- OUTPUT POWER: 2 VA
- STANDARD OUTPUT VOLTAGE: 5, 9, 10, 24 VDC
- RIPPLE VOLTAGE: < 2%.
- OVERLOAD PROTECTION: Yes
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
