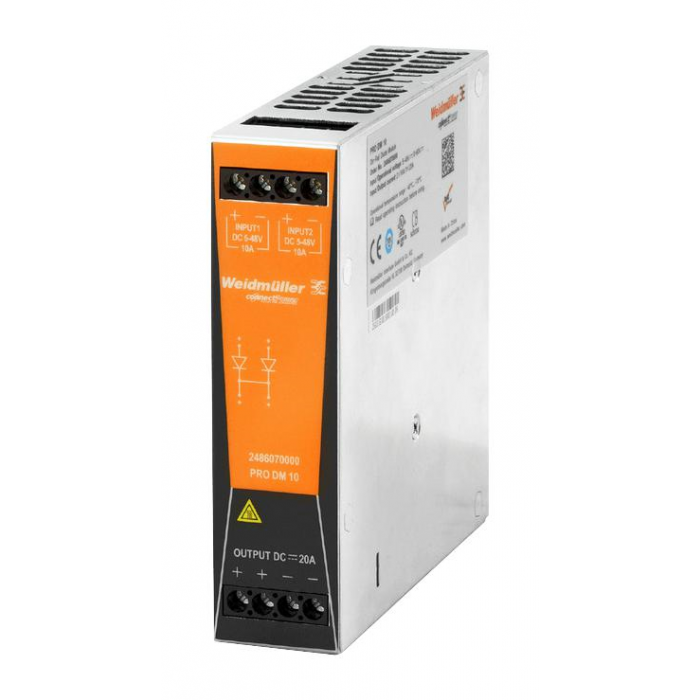

Specifications weights and dimensions:

• Depth: 125 mm.
• Height: 125 mm.
• Width: 32 mm.
• Net weight: 501 g.

Temperatures:

• Storage temperature range: -40°C - 85°C.
• Operating temperature range: -40°C - 70°C.
• Humididy: 5-95% relative humidity, Tu = 40°C, without condensation.

Input:

• Connection system Screw connection.
• DC input voltage range 0...60 V DC.
• Input current: 2 × 12 A (-40 °C ~ +45°C), 2 × 10 A (+45 °C ~ +60 °C), 2 × 7.5 A (+70 °C).
• Input fuse (internal): No.
• Nominal power consumption: 240 VA.
• Rated input voltage: 24 V DC.

Output:

• Connection system: Screw connection.
• Continous output current @ UNominal: 1 × 24 A (-40 °C ~ +45 °C), 1 × 20 A (+45 °C ~ +60 °C), 1 × 15 A (+70 °C).
• Output current, maximum: 20 A
• Output power: 466 W.
• Protection against inverse voltage: Yes.
• Rated output voltage: VINPUT-typ. 0.7 V.
• Residual ripple, breaking spikes: Dependent on the power supplies used.

General data:

• Degree of efficiency: > 97% @ 24 V Input voltage.
• Derating: > 60°C / 75% load @ 70°C.
• Housing version: Metal, corrosion resistant.
• Humidity 5-95% relative humidity, Tu = 40°C, without condensation.
• Mounting position, installation notice: Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circulation. Can mount side by side with no space in between.
• Protection degree: IP20.
• Short-circuit protection: No.
• Surge voltage category: III.

EMC / shock / vibration:

• Interference immunity test acc. to: EN 55022, EN 55024, EN 61000-3-2,-3, EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted).
• Shock resistance IEC 60068-2-27: 30 g in all directions.
• Vibration resistance IEC 60068-2-6: 2.3 g (on DIN rail).

Insulation coordination:

• Insulation voltage input / earth: 0.5 kV.
• Insulation voltage output / earth: 0.5 kV.
• Pollution severity: 2.
• Protection class: III, with no ground connection, for SELV.
• Surge voltage category: III.

Electrical safety (applied standards):

• Electrical machine equipment: Acc. to EN60204.
• For use with electronic equipment: Acc. to EN50178 / VDE0160.
• Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.

Connection data (input):

• Conductor cross-section, AWG/kcmil, maximum: 10.
• Conductor cross-section, AWG/kcmil, minimum: 26.
• Conductor cross-section, flexible , minimum: 0.22 mm².
• Conductor cross-section, rigid , maximum: 6 mm².
• Conductor cross-section, rigid , minimum 0.18 mm².
• Connection system: Screw connection.
• Number of terminals: 4 (1+, 2+, 1-, 2-).
• Screwdriver blade: 0.8 x 4.0, PZ 1.
• Tightening torque, maximum: 0.6 Nm.
• Tightening torque, minimum: 0.5 Nm.
• Wire connection cross section, flexible (input), maximum: 4 mm².

Connection data (output):

• Conductor cross-section, AWG/kcmil, maximum: 10.
• Conductor cross-section, AWG/kcmil, minimum: 26.
• Conductor cross-section, flexible , maximum: 6 mm².
• Conductor cross-section, flexible , minimum: 0.22 mm².
• Conductor cross-section, rigid , maximum: 6 mm².
• Conductor cross-section, rigid , minimum: 0.18 mm².
• Connection system: Screw connection.
• Number of terminals: 4 (++ / --).
• Screwdriver blade: 0.8 x 4.0, PZ 1.
• Tightening torque, maximum: 0.6 Nm.
• Tightening torque, minimum: 0.5 Nm.

Approbations:

• Certificate no. (cULus): E258476.
• Institute (cULus): CULUS.
