Specification dimensions and weights:

• Depth: 120 mm.
• Depth (inches): 4.724 inch
• Height: 125 mm
• Height (inches): 4.921 inch
• Width: 100 mm
• Width (inches): 3.937 inch
• Net weight: 1,557 g.

Temperatures:

• Storage temperature: -40 °C - 85 °C.
• Operating temperature: -25 °C - 70 °C.

Environmental Product Compliance:

• REACH SVHC: Lead 7439-92-1.
• SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.

eshop_Filter_02_03_Power_Supplies:

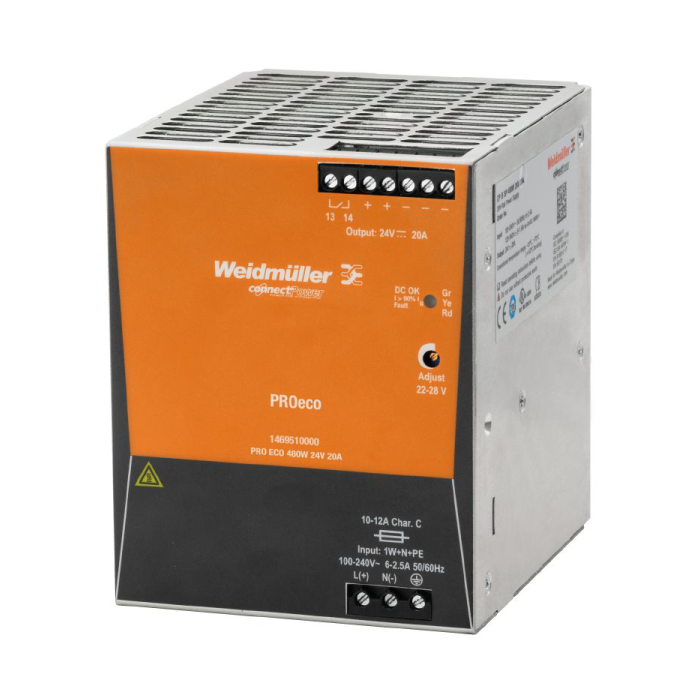

• Product type: Power supply, switch-mode power supply unit.

Input:

• AC current consumption: 2,37 A @ 230 V AC / 5,2 A @ 110 V AC.
• AC input voltage range: 85...264 V AC (derating at 100 V AC).
• Connection system: Screw connection.
• DC current consumption: 1,55 A @ 370 V DC / 4,65 A @ 120 V DC.
• DC input voltage range: 80...370 V DC (Derating @ 120 V DC).
• Frequency range AC: 47...63 Hz.
• Input frequency: 47...63 Hz.
• Input fuse (internal): Yes.
• Inrush current: max. 5 A.
• Nominal power consumption: 527.5 VA.
• Rated input voltage: 100...240 V AC.
• Recommended back-up fuse: 6 A / DI, safety fuse, 16 A, Char. B, circuit breaker, 6…8 A, Char. C, circuit breaker.
• Surge protection: Varistor.

Output:

• Capacitive load: unrestricted.
• Connection system: Screw connection.
• Continuous output current @ UNominal: 20 A @ 55 °C,  15 A @ 70 °C.
• Nominal output current for Unom: 20 A at 55 °C.
• Output power: 480 W.
• Output voltage, maximum: 28 V.
• Output voltage, minimum: 22 V.
• Output voltage, note: (adjustable via potentiometer).
• Overload protection: Yes.
• Parallel connection option: yes, maximum 3.
• Protection against inverse voltage: Yes.
• Ramp-up time: ≤ 100 ms.
• Rated output voltage: 24 V DC ± 1 %.
• Residual ripple, breaking spikes: < 50 mVPP @ 24 V DC, IN.

General data:

• AC failure bridging time @ Inom: > 20 ms @ 230 V AC / > 20 ms @ 115 V AC.
• Degree of efficiency: 91 %.
• Earth leakage current, maximum: 3.5 mA.
• Housing version: Metal, corrosion resistant.
• Indication: Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ.), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC).
• Maximum perm. air humidity (operational): 5 %…95 % RH.
• Mounting position, installation notice: on terminal rail TS 35.
• MTBF:
• According to Standard: SN 29500.
• Operating time (hours), minimum: 1,500,000 h.
• Ambient temperature: 25 °C.
• Input voltage: 230 V.
• Output power: 480 W.
• Duty cycle: 100 %.
• According to Standard: SN 29500.
• Operating time (hours), minimum: 679,000 h.
• Ambient temperature: 40 °C.
• Input voltage: 230 V.
• Output power: 480 W.
• Duty cycle: 100 %.
• Power factor (approx.): > 0.98…230 V AC / > 0.98…115 V AC.
• Power loss, idling: 5 W.
• Power loss, nominal load: 43 W.
• Protection against over-heating: Yes.
• Protection against reverse voltages from the load: 30 - 35 V DC.
• Protection degree: IP20.
• Short-circuit protection: Yes.
• Surge voltage category: II.

EMC / shock / vibration:

• Interference immunity test acc.to: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips).
• Limiting of mains voltage harmonic currents: According to EN 61000-3-2.
• Noise emission in accordance with EN55032: Class B.
• Shock resistance IEC 60068-2-27: 15 g In all directions.
• Vibration resistance IEC 60068-2-6: 1 g according to EN 50178.

Insulation coordination:

• Insulation voltage input / earth: 2 kV.
• Insulation voltage output / earth: 0.5 kV.
• Insulation voltage, input/output: 3 kV.
• Pollution severity: 2.
• Protection class: I, with PE connection.
• Surge voltage category: II.

Electrical safety (applied standards):

• Electrical machine equipment: Acc.to EN60204.
• For use with electronic equipment: Acc.to EN50178 / VDE0160.
• Protection against dangerous shock currents: Acc.to VDE0106-101.
• Protective separation / protection against electrical shock: VDE0100-410 / acc.to DIN57100-410.
• Safety extra-low voltage: SELV acc.to IEC 60950-1, PELV according to EN 60204-1.
• Safety transformers for switch-mode power supplies: According to EN 61558-2-16.

Connection data (input):

• Conductor cross-section, AWG/kcmil, maximum: 12.
• Conductor cross-section, AWG/kcmil, minimum: 26.
• Conductor cross-section, flexible, minimum: 0.5 mm².
• Conductor cross-section, rigid, maximum: 6 mm².
• Conductor cross-section, rigid, minimum: 0.5 mm².
• Connection system: Screw connection.
• Number of terminals: 3 for L/N/PE.
• Tightening torque, maximum: 0.6 Nm.
• Tightening torque, minimum: 0.5 Nm.
• Wire connection cross section, flexible (input), maximum: 2.5 mm².

Connection data (output):

• Conductor cross-section, AWG/kcmil, maximum: 12.
• Conductor cross-section, AWG/kcmil, minimum: 26.
• Conductor cross-section, flexible, maximum: 2.5 mm².
• Conductor cross-section, flexible, minimum: 0.5 mm².
• Conductor cross-section, rigid, maximum: 6 mm².
• Conductor cross-section, rigid, minimum: 0.5 mm².
• Connection system: Screw connection.
• Number of terminals: 7 (++, --,13,14).
• Tightening torque, maximum: 0.6 Nm.
• Tightening torque, minimum: 0.5 Nm.

Signalling:

• Contact load (NO contact): maximum 30 V DC / 1 A.
• Floating contact: Yes.
• Relay on/off: Output voltage >21.6 V DC/ <20.4 V DC, overload.

Approbations:

• Certificate no.(cULus): E258476.
• Institute (cULus): CULUS.
