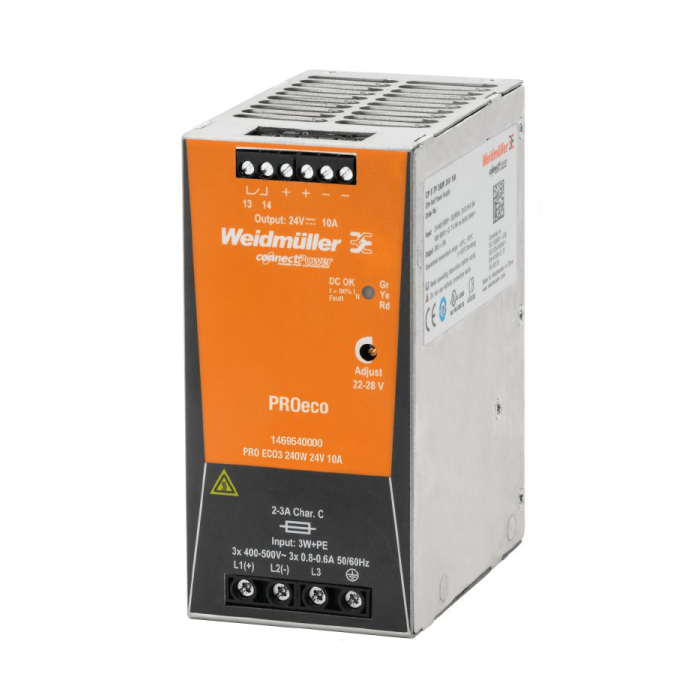

PRO ECO3 240W 24V 10A

ZAR 3,789.49
Out of stock
SKU
1469540000

PRO ECO3 120W 24V 5A:

  • You're seeking for a reliable power supply with simple features.
  • With PROeco, you may get low-cost switch-mode power supply units with excellent efficiency and system capability.
  • High-performance switch mode power supply units can provide significant competitive advantages in machine production.
  • The low-cost PROeco series provides basic functions while delivering excellent performance and versatility.
  • Our PROeco switch-mode power supply units are incredibly easy to maintain, have a compact design, and great efficiency.
  • Temperature protection, short-circuit and overload resistance allow them to be employed in a wide range of applications.
  • PROeco systems include comprehensive safety features, compatibility with diode and capacitance modules, and UPS components for redundant power supply setup.

Specifications dimensions and weights:

  • Depth: 100 mm.
  • Depth (inches): 3.937 inch.
  • Height: 125 mm.
  • Height (inches): 4.921 inch.
  • Width: 60 mm.
  • Width (inches): 2.362 inch.
  • Net weight: 957 g.

Temperatures:

  • Storage temperature: -40 °C...85 °C.
  • Operating temperature: -25 °C...70 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1.
  • SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.

eshop_Filter_02_03_Power_Supplies:

  • Product type: Power supply, switch-mode power supply unit.

Rated data UL:

  • Certificate No. (cURus): E255651.

Input:

  • AC input voltage range: 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC.
  • Connection system: Screw connection.
  • Current consumption in relation to the input voltage:
    • Voltage type: 3-phase AC.
    • Input voltage: 400 V.
    • Input current: 0.8 A.
    • Voltage type: 3-phase AC.
    • Input voltage: 500 V.
    • Input current: 0.6 A.
    • Voltage type: DC.
    • Input voltage: 800 V.
    • Input current: 0.4 A.
    • Voltage type: DC.
    • Input voltage: 450 V.
    • Input current: 0.7 A.
  • DC input voltage range: 450...800 V DC.
  • Frequency range AC: 47...63 Hz.
  • Input frequency: 47...63 Hz.
  • Input fuse (internal): Yes.
  • Inrush current: max. 50 A.
  • Nominal power consumption: 272.7 VA.
  • Rated input voltage: 3x 400...3x 500 V AC (wide-range input).
  • Recommended back-up fuse: 2 A / DI, safety fuse, 2...3 A, Char. C, circuit breaker.
  • Surge protection: Varistor.

Output:

  • Capacitive load: unrestricted.
  • Connection system: Screw connection.
  • Continous output current @ UNominal: 10 A @ 55 °C, 2.5 A @ 70 °C.
  • Nominal output current for Unom: 10 A @ 55 °C.
  • Output power: 240 W.
  • Output voltage, max.: 28 V.
  • Output voltage, min.: 22 V.
  • Output voltage, note: (adjustable via potentiometer).
  • Overload protection: Yes.
  • Parallel connection option: yes, max. 5.
  • Protection against inverse voltage: Yes.
  • Ramp-up time: ≤ 100 ms.
  • Rated output voltage: 24 V DC ± 1 %.
  • Residual ripple, breaking spikes: < 50 mVPP @ 24 V DC, IN.

General data:

  • AC failure bridging time @ Inom: > 40 ms @ 3 x 500 V AC / > 20 ms @ 3 x 400 V AC.
  • Degree of efficiency: 88%.
  • Earth leakage current, max.: 3.5 Ma.
  • Housing version: Metal, corrosion resistant.
  • Indication: Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC).
  • Max. perm. air humidity (operational): 5 %…95 % RH.
  • Mounting position, installation notice: on terminal rail TS 35.
  • MTBF:
    • According to Standard: SN 29500.
    • Operating time (hours), min.: 1,400,000 h.
    • Ambient temperature: 25 °C.
    • Input voltage: 400 V.
    • Output power: 240 W.
    • Duty cycle: 100 %.
    • According to Standard: SN 29500.
    • Operating time (hours), min.: 601,000 h.
    • Ambient temperature: 40 °C.
    • Input voltage: 400 V.
    • Output power: 240 W.
    • Duty cycle: 100 %.
  • Power factor (approx.): > 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC.
  • Power loss, idling: 8 W.
  • Power loss, nominal load: 26 W.
  • Protection against over-heating: Yes.
  • Protection against reverse voltages from the load: 30…35 V DC.
  • Protection degree: IP20.
  • Short-circuit protection: Yes.
  • Surge voltage category: II.

EMC / shock / vibration:

  • Interference immunity test acc. to: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips).
  • Limiting of mains voltage harmonic currents: According to EN 61000-3-2.
  • Noise emission in accordance with EN55032: Class B.
  • Shock resistance IEC 60068-2-27: 15 g In all directions.
  • Vibration resistance IEC 60068-2-6: 1 g according to EN 50178.

Insulation coordination:

  • Insulation voltage input / earth: 2 kV.
  • Insulation voltage output / earth: 0.5 kV.
  • Insulation voltage, input/output: 3 kV.
  • Pollution severity: 2.
  • Protection class: I, with PE connection.
  • Surge voltage category: II.

Electrical safety (applied standards):

  • Electrical machine equipment: Acc. to EN60204.
  • For use with electronic equipment: Acc. to EN50178 / VDE0160.
  • Protection against dangerous shock currents: Acc. to VDE0106-101.
  • Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
  • Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
  • Safety transformers for switch-mode power supplies: According to EN 61558-2-16.

Connection data (input):

  • Conductor cross-section, AWG/kcmil, max.: 12.
  • Conductor cross-section, AWG/kcmil, min.: 26.
  • Conductor cross-section, flexible, min.: 0.5 mm².
  • Conductor cross-section, rigid, max.: 6 mm².
  • Conductor cross-section, rigid, min.: 0.5 mm².
  • Connection system: Screw connection.
  • Number of terminals: 4 for L1/L2/L3/PE.
  • Tightening torque, max.: 0.6 Nm.
  • Tightening torque, min.: 0.5 Nm.
  • Wire connection cross section, flexible (input), max.: 2.5 mm².

Connection data (output):

  • Conductor cross-section, AWG/kcmil, max.: 12.
  • Conductor cross-section, AWG/kcmil, min.: 26.
  • Conductor cross-section, flexible, max.: 2.5 mm².
  • Conductor cross-section, flexible, min.: 0.5 mm².
  • Conductor cross-section, rigid, max.: 6 mm².
  • Conductor cross-section, rigid, min.: 0.5 mm²
  • Connection system: Screw connection.
  • Number of terminals: 6 (++,--,13,14).
  • Tightening torque, max.: 0.6 Nm.
  • Tightening torque, min.: 0.5 Nm.

Signalling:

  • Contact load (NO contact): max. 30 V DC / 1 A.
  • Floating contact: Yes.
  • Relay on/off: Output voltage >21.6 V DC/ <20.4 V DC, overload.

Approbations:

  • Certificate no. (cULus): E258476.
  • Certificate No. (cURus): E255651.
  • Institute (cULus): CULUS.
  • Institute (cURus): CURUS.
