Specifications dimensions and weights:

• Depth: 120 mm.
• Depth (inches): 4.724 inch.
• Height: 125 mm.
• Height (inches): 4.921 inch.
• Width: 160 mm.
• Width (inches): 6.299 inch.
• Net weight: 2,899 g.

Temperatures:

• Storage temperature: -40 °C...85 °C.
• Operating temperature: -25 °C...70 °C.

Environmental Product Compliance:

• REACH SVHC: Lead 7439-92-1.
• SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.

eshop_Filter_02_03_Power_Supplies:

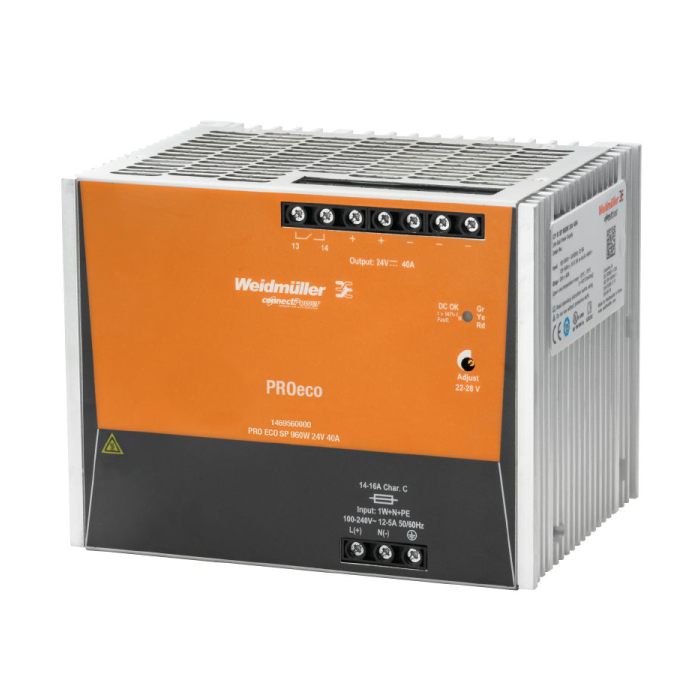

• Product type: Power supply, switch-mode power supply unit.

Rated data UL:

• Certificate No. (cURus): E255651.

Input:

• AC input voltage range: 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC.
• Connection system: Screw connection.
• Current consumption in relation to the input voltage:
• Voltage type: 3-phase AC.
• Input voltage: 400 V.
• Input current: 2.68 A.
• Voltage type: 3-phase AC.
• Input voltage: 500 V.
• Input current: 2.15 A.
• Voltage type: DC.
• Input voltage: 800 V.
• Input current: 1.37 A.
• Voltage type: DC.
• Input voltage: 450 V.
• Input current: 2.37 A.
• DC input voltage range: 450...800 V DC.
• Frequency range AC: 47...63 Hz.
• Input frequency: 47...63 Hz.
• Input fuse (internal): Yes.
• Inrush current: max. 40 A.
• Nominal power consumption: 1,067 VA.
• Rated input voltage: 3x 400...3x 500 V AC (wide-range input).
• Recommended back-up fuse: 6 A / DI, safety fuse, 10 A, Char. B, circuit breaker, 6...8 A, Char. C, circuit breaker.
• Surge protection: Varistor.
• Output:
• Capacitive load: unrestricted.
• Connection system: Screw connection.
• Continous output current @ UNominal: 40 A @ 55 °C, 24 A @ 70 °C.
• Nominal output current for Unom: 40 A @ 55 °C.
• Output power: 960 W.
• Output voltage, max.: 28 V.
• Output voltage, min.: 22 V.
• Output voltage, note: (adjustable via potentiometer).
• Overload protection: Yes.
• Parallel connection option: yes, max. 3.
• Protection against inverse voltage: Yes.
• Ramp-up time: ≤ 100 ms.
• Rated output voltage: 24 V DC ± 1 %.
• Residual ripple, breaking spikes: < 50 mVPP @ 24 V DC, IN.

General data:

• AC failure bridging time @ Inom: > 25 ms at 3 x 500 V AC / > 20 ms at 3 x 400 V AC.
• Degree of efficiency: 90%.
• Earth leakage current, max.: 3.5 Ma.
• Housing version: Metal, corrosion resistant.
• Indication: Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC).
• Max. perm. air humidity (operational): 5 %…95 % RH.
• Mounting position, installation notice: on terminal rail TS 35.
• MTBF:
• According to Standard: SN 29500.
• Operating time (hours), min.: 1,700,000 h.
• Ambient temperature: 25 °C.
• Input voltage: 400 V.
• Output power: 240 W.
• Duty cycle: 100 %.
• According to Standard: SN 29500.
• Operating time (hours), min.: 776,000 h.
• Ambient temperature: 40 °C.
• Input voltage: 400 V.
• Output power: 240 W.
• Duty cycle: 100 %.
• Power factor (approx.): > 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC.
• Power loss, idling: 5 W.
• Power loss, nominal load: 95 W.
• Protection against over-heating: Yes.
• Protection degree: IP20.
• Short-circuit protection: Yes.
• Surge voltage category: II.

EMC / shock / vibration:

• Interference immunity test acc. to: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips).
• Limiting of mains voltage harmonic currents: According to EN 61000-3-2.
• Noise emission in accordance with EN55032: Class B.
• Shock resistance IEC 60068-2-27: 15 g In all directions.
• Vibration resistance IEC 60068-2-6: 1 g according to EN 50178.

Insulation coordination:

• Insulation voltage input / earth: 2 kV.
• Insulation voltage output / earth: 0.5 kV.
• Insulation voltage, input/output: 3 kV.
• Pollution severity: 2.
• Protection class: I, with PE connection.
• Surge voltage category: II.

Electrical safety (applied standards):

• Electrical machine equipment: Acc. to EN60204.
• For use with electronic equipment: Acc. to EN50178 / VDE0160.
• Protection against dangerous shock currents: Acc. to VDE0106-101.
• Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
• Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
• Safety transformers for switch-mode power supplies: According to EN 61558-2-16.

Connection data (input):

• Conductor cross-section, AWG/kcmil, max.: 12.
• Conductor cross-section, AWG/kcmil, min.: 26.
• Conductor cross-section, flexible, min.: 0.5 mm².
• Conductor cross-section, rigid, max.: 6 mm².
• Conductor cross-section, rigid, min.: 0.5 mm².
• Connection system: Screw connection.
• Number of terminals: 4 for L1/L2/L3/PE.
• Tightening torque, max.: 0.6 Nm.
• Tightening torque, min.: 0.5 Nm.
• Wire connection cross section, flexible (input), max.: 2.5 mm².

Connection data (output):

• Conductor cross-section, AWG/kcmil, max.: 8.
• Conductor cross-section, AWG/kcmil, min.: 22.
• Conductor cross-section, flexible, max.: 10 mm².
• Conductor cross-section, flexible, min.: 2.5 mm².
• Conductor cross-section, rigid, max.: 16 mm².
• Conductor cross-section, rigid, min.: 0.5 mm²
• Connection system: Screw connection.
• Number of terminals: 7 (++,--,13,14).
• Tightening torque, max.: 0.6 Nm.
• Tightening torque, min.: 0.5 Nm.

Signalling:

• Contact load (NO contact): max. 30 V DC / 1 A.
• Floating contact: Yes.
• Relay on/off: Output voltage >21.6 V DC/ <20.4 V DC, overload.

Approbations:

• Certificate no. (cULus): E258476.
• Certificate No. (cURus): E255651.
• Institute (cULus): CULUS.
• Institute (cURus): CURUS.
