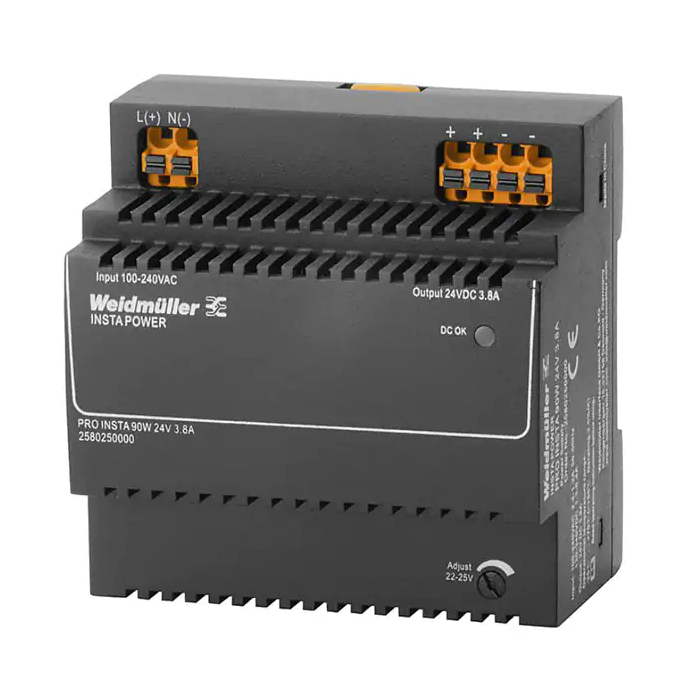

SPECIFICATION DIMENSIONS AND WEIGHTS:

• DEPTH: 60 MM.
• DEPTH (INCHES): 2.362 INCH.
• HEIGHT: 90 MM.
• HEIGHT (INCHES): 3.543 INCH.
• WIDTH: 90 MM.
• WIDTH (INCHES): 3.543 INCH.
• NET WEIGHT: 352 G.

TEMPERATURES:

• STORAGE TEMPERATURE: -40 °C...85 °C.
• OPERATING TEMPERATURE: -25 °C...70 °C.

INPUT:

• AC CURRENT CONSUMPTION: 1.2 A @ 230 V AC / 2.4 A @ 100 V AC.
• AC INPUT VOLTAGE RANGE: 85...264 V AC (DERATING AT 100 V AC).
• CONNECTION SYSTEM: PUSH IN WITH ACTUATOR.
• DC CURRENT CONSUMPTION: 0.4 A @ 370 V DC / 1.3 A @ 120 V DC.
• DC INPUT VOLTAGE RANGE: 95…370 V DC.
• FREQUENCY RANGE AC: 45…65 HZ.
• INPUT FUSE (INTERNAL): YES.
• INRUSH CURRENT: MAX. 40 A.
• NOMINAL POWER CONSUMPTION: 103.4 VA.
• RATED INPUT VOLTAGE: 110...240 V AC / 120...340 V DC.
• RECOMMENDED BACK-UP FUSE: 2 A / DI, SAFETY FUSE, 6 A, CHAR. B, CIRCUIT BREAKER, 2...4 A, CHAR. C CIRCUIT BREAKER.
• WIRE CONNECTION METHOD: PUSH IN WITH ACTUATOR.

OUTPUT:

• CAPACITIVE LOAD: UNRESTRICTED.
• CONNECTION SYSTEM: PUSH IN.
• CONTINUOUS OUTPUT CURRENT @ UNOMINAL: 3.8 A @ 55 °C, 2.38 A @ 70 °C.
• NOMINAL OUTPUT CURRENT FOR UNOM: 3.8 A @ 55 °C.
• OUTPUT CURRENT, MAX.: 3.8 A.
• OUTPUT POWER: 90 W.
• OUTPUT VOLTAGE, MAX.: 25 V.
• OUTPUT VOLTAGE, MIN.: 22 V.
• OUTPUT VOLTAGE, NOTE: (ADJUSTABLE VIA POTENTIOMETER ON FRONT).
• RAMP-UP TIME: ≤ 100 MS.
• RATED OUTPUT VOLTAGE: 24 V DC ± 1 %.
• RESIDUAL RIPPLE, BREAKING SPIKES: < 50 MVSS @ UNENN, FULL LOAD.
• WIRE CONNECTION METHOD: PUSH IN WITH ACTUATOR.

GENERAL DATA:

• DEGREE OF EFFICIENCY: 87 %.
• HOUSING VERSION: PLASTIC, PROTECTIVE INSULATION.
• MOUNTING POSITION, INSTALLATION NOTICE: HORIZONTAL ON DIN RAIL TS 35, TOP AND BOTTOM 50 MM CLEARANCE FOR FREE AIR FLOW, 10 MM CLEARANCE TO NEIGHBOURING ACTIVE SUBASSEMBLIES WITH FULL LOAD, 5 MM WITH PASSIVE NEIGHBOURING SUBASSEMBLIES, DIRECT ROW MOUNTING WITH 90% RATED LOAD.
• MTBF:
• ACCORDING TO STANDARD: TELCORDIA SR-332.
• OPERATING TIME (HOURS), MINIMUM: 619,000 H.
• AMBIENT TEMPERATURE: 25 °C.
• INPUT VOLTAGE: 230 V.
• OUTPUT POWER: 90 W.
• DUTY CYCLE: 100 %.
• ACCORDING TO STANDARD: TELCORDIA SR-332.
• OPERATING TIME (HOURS), MIN.: 293,000 H.
• AMBIENT TEMPERATURE: 40 °C.
• INPUT VOLTAGE: 230 V.
• OUTPUT POWER: 90 W.
• DUTY CYCLE: 100 %.
• POWER LOSS, IDLING: 0.45 W.
• POWER LOSS, NOMINAL LOAD: 11.7 W.
• PROTECTION AGAINST REVERSE VOLTAGES FROM THE LOAD: 30…35 V DC.
• PROTECTION DEGREE: IP20.
• SHORT-CIRCUIT PROTECTION: YES, INTERNAL.
• START-UP: ≥ -40 °C.

EMC / SHOCK / VIBRATION:

• INTERFERENCE IMMUNITY TEST ACCORDING TO: EN 61000-4-2 (ESD)|EN 61000-4-3 AND EN 61000-4-8 (FIELDS)|EN 61000-4-4 (BURST)|EN 61000-4-5 (SURGE)|EN 61000-4-6 (CONDUCTED)|EN 61000-4-11 (DIPS) EN 61000-4-11 (DIPS).
• LIMITING OF MAINS VOLTAGE HARMONIC CURRENTS: EN 61000-4-2 (ESD)|EN 61000-4-3 AND EN 61000-4-8 (FIELDS)|EN 61000-4-4 (BURST)|EN 61000-4-5 (SURGE)|EN 61000-4-6 (CONDUCTED)| EN 61000-4-11 (DIPS) EN 61000-4-11 (DIPS).
• NOISE EMISSION IN ACCORDANCE WITH EN55032: CLASS B.
• SHOCK RESISTANCE IEC 60068-2-27: 15 G IN ALL DIRECTIONS.
• VIBRATION RESISTANCE IEC 60068-2-6: 2.3 G.

INSULATION COORDINATION:

• INSULATION VOLTAGE INPUT / EARTH: 3.5 KV.
• INSULATION VOLTAGE OUTPUT / EARTH: 0.5 KV.
• INSULATION VOLTAGE, INPUT/OUTPUT: 4 KV.
• POLLUTION SEVERITY: 2.
• PROTECTION CLASS: II.

ELECTRICAL SAFETY (APPLIED STANDARDS):

• ELECTRICAL MACHINE EQUIPMENT: ACC. TO EN60204.
• FOR USE WITH ELECTRONIC EQUIPMENT: ACC. TO EN50178 / VDE0160.
• PROTECTION AGAINST DANGEROUS SHOCK CURRENTS: ACC. TO VDE0106-101.
• PROTECTIVE SEPARATION / PROTECTION AGAINST ELECTRICAL SHOCK: VDE0100-410 / ACC. TO DIN57100-410.
• SAFETY EXTRA-LOW VOLTAGE: SELV ACC. TO IEC 60950-1, PELV ACCORDING TO EN 60204-1.
• SAFETY TRANSFORMERS FOR SWITCH-MODE POWER SUPPLIES: ACCORDING TO EN 61558-2-16.

CONNECTION DATA (INPUT):

• CONDUCTOR CROSS-SECTION, AWG/KCMIL, MAX.: 12.
• CONDUCTOR CROSS-SECTION, AWG/KCMIL, MIN.: 24.
• CONDUCTOR CROSS-SECTION, FLEXIBLE, MIN.: 0.25 MM².
• CONDUCTOR CROSS-SECTION, RIGID, MAX.: 2.5 MM².
• CONDUCTOR CROSS-SECTION, RIGID, MIN.: 0.25 MM².
• CONNECTION SYSTEM: PUSH IN WITH ACTUATOR.
• NUMBER OF TERMINALS: 2 (L, N).
• WIRE CONNECTION CROSS SECTION, FLEXIBLE (INPUT), MAX.: 2.5 MM².

CONNECTION DATA (OUTPUT):

• CONDUCTOR CROSS-SECTION, AWG/KCMIL, MAX.: 12.
• CONDUCTOR CROSS-SECTION, AWG/KCMIL, MIN.: 24.
• CONDUCTOR CROSS-SECTION, FLEXIBLE, MAX.: 2.5 MM².
• CONDUCTOR CROSS-SECTION, FLEXIBLE, MIN.: 0.25 MM².
• CONDUCTOR CROSS-SECTION, RIGID, MAX.: 2.5 MM².
• CONDUCTOR CROSS-SECTION, RIGID, MIN.: 0.25 MM².
• CONNECTION SYSTEM: PUSH IN.
• NUMBER OF TERMINALS: 4 (++ / --).

SIGNALLING:

• LED GREEN: OPERATING VOLTAGE OK.

APPROBATIONS:

• CERTIFICATE NO. (CULUS): E258476.
• INSTITUTE (CULUS): CULUS.
