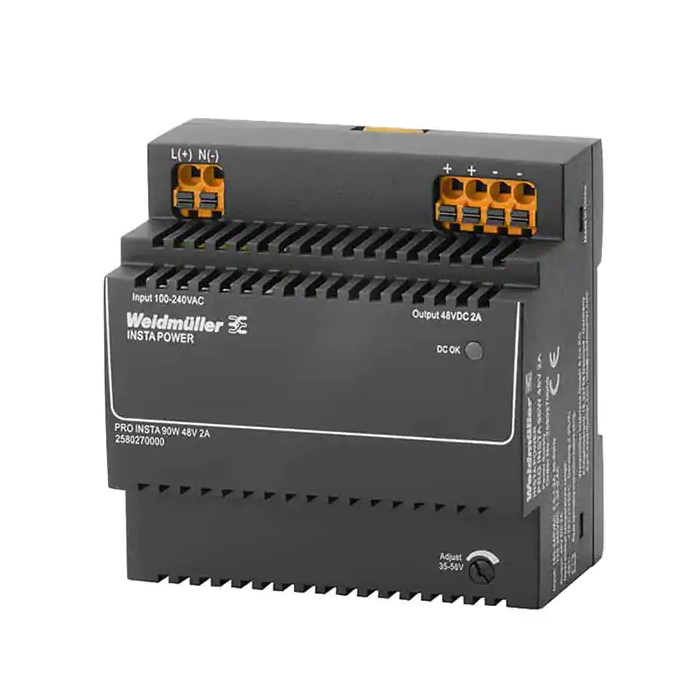

SPECIFICATIONS WEIGHTS AND DIMENSIONS:

• Depth: 60 mm.
• Depth (inches): 2.362 inch.
• Height: 90 mm.
• Height (inches): 3.543 inch.
• Width: 90 mm.
• Width (inches): 3.543 inch.
• Net weight: 361 g.

Temperatures:

• Storage temperature: -40 °C -85 °C.
• Operating temperature: -25 °C - 70 °C.

Input:

• AC current consumption: 1.2 A @ 230 V AC / 2.5 A @ 100 V AC.
• AC input voltage range: 85 - 264 V AC (derating at 100 V AC).
• Connection system: PUSH IN with actuator.
• DC current consumption: 0.4 A @ 370 V DC / 1.35 A @ 120 V DC.
• DC input voltage range: 95 - 370 V DC.
• Frequency range AC: 45 - 65 Hz.
• Input fuse (internal): Yes.
• Inrush current: maximum. 40 A.
• Nominal power consumption: 107.9 VA.
• Rated input voltage: 110 - 240 V AC / 120 - 340 V DC.
• Recommended back-up fuse: 2 A / DI, safety fuse, 6 A, Char. B, circuit breaker, 2 - 4 A, Char. C circuit breaker.
• Wire connection method: PUSH IN with actuator.

Output:

• Capacitive load: unrestricted.
• Connection system: PUSH IN.
• Continuous output current @ UNominal: 2 A @ 55 °C, 1.25 A @ 70 °C.
• Nominal output current for Unom: 2 A @ 55 °C.
• Output current, maximum.: 2 A.
• Output power: 96 W.
• Output voltage, maximum.: 56 V.
• Output voltage, minimum.: 35 V.
• Output voltage, note: (adjustable via potentiometer on front).
• Ramp-up time: ≤ 100 ms.
• Rated output voltage: 48 V DC ± 1 %.
• Residual ripple, breaking spikes: < 50 mVss @ UNenn, Full Load.
• Wire connection method: PUSH IN with actuator.

General data:

• Degree of efficiency: 89 %.
• Housing version: Plastic, protective insulation.
• Mounting position, installation notice: Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load.
• MTBF:
• According to Standard: Telcordia SR-332.
• Operating time (hours), minimum: 648,000 h.
• Ambient temperature: 25 °C.
• Input voltage: 230 V.
• Output power: 96 W.
• Duty cycle: 100 %.
• According to Standard: Telcordia SR-332.
• Operating time (hours), minimum: 310,000 h.
• Ambient temperature: 40 °C.
• Input voltage: 230 V.
• Output power: 96 W.
• Duty cycle: 100 %.
• Power loss, idling: 0.45 W.
• Power loss, nominal load: 12.48 W.
• Protection against reverse voltages from the load: 30…35 V DC.
• Protection degree: IP20.
• Short-circuit protection: Yes, internal.
• Start-up: ≥ -40 °C.

EMC / shock / vibration:

• Interference immunity test acc. to: EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips) EN 61000-4-11 (Dips).
• Limiting of mains voltage harmonic currents: EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)| EN 61000-4-11 (dips) EN 61000-4-11 (Dips).
• Noise emission in accordance with EN55032: Class B.
• Shock resistance IEC 60068-2-27: 15 g in all directions.
• Vibration resistance IEC 60068-2-6: 2.3 g.

Insulation coordination:

• Insulation voltage input / earth: 3.5 Kv.
• Insulation voltage output / earth: 0.5 kV.
• Insulation voltage, input/output: 4 kV.
• Pollution severity: 2.
• Protection class: II.

Electrical safety (applied standards):

• Electrical machine equipment: Acc. to EN60204.
• For use with electronic equipment: Acc. to EN50178 / VDE0160.
• Protection against dangerous shock currents: Acc. to VDE0106-101.
• Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
• Safety extra-low voltage: SELV acc. to IEC 60950-1.
• PELV according to EN 60204-1.
• Safety transformers for switch-mode power supplies: According to EN 61558-2-16.

Connection data (input):

• Conductor cross-section, AWG/kcmil, maximum: 12.
• Conductor cross-section, AWG/kcmil, minimum: 24.
• Conductor cross-section, flexible, minimum: 0.25 mm².
• Conductor cross-section, rigid, maximum: 2.5 mm².
• Conductor cross-section, rigid, minimum: 0.25 mm².
• Connection system: PUSH IN with actuator.
• Number of terminals: 2 (L,N).
• Wire connection cross section, flexible (input), maximum: 2.5 mm².

Connection data (output):

• Conductor cross-section, AWG/kcmil, maximum: 12.
• Conductor cross-section, AWG/kcmil, minimum: 24.
• Conductor cross-section, flexible, maximum: 2.5 mm².
• Conductor cross-section, flexible, minimum: 0.25 mm².
• Conductor cross-section, rigid, maximum: 2.5 mm².
• Conductor cross-section, rigid, minimum: 0.25 mm².
• Connection system: PUSH IN.
• Number of terminals: 4 (++ / --).

Signalling:

• LED green: Operating voltage OK.

Approbations:

• Certificate no. (cULus): E258476.
• Institute (cULus): CULUS.
