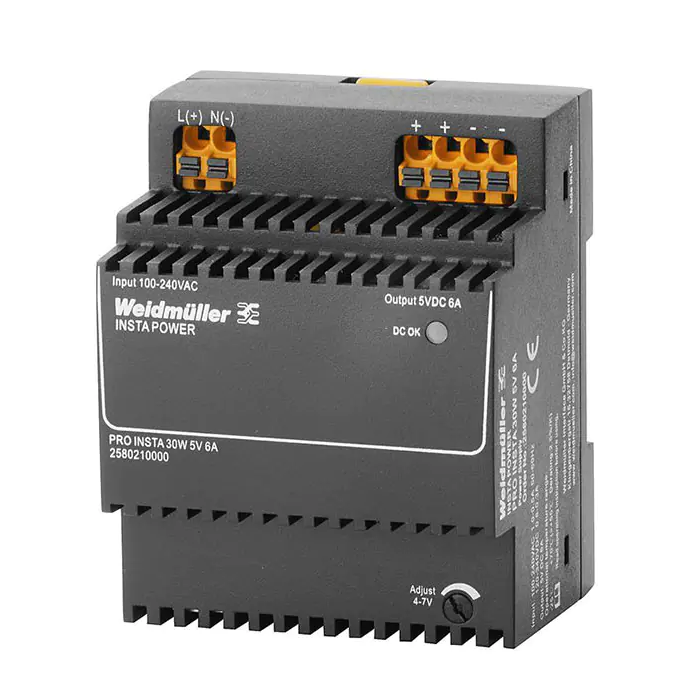

PRO INSTA 5V 6A 30W

ZAR 1,033.85
Out of stock
SKU
2580210000

Switch-mode power supply unit, 5 volts:

  • The single-phase INSTA-POWER switching power supplies are distinguished by their broad power spectrum, compact design, and excellent value for money.
  • They can withstand temperatures ranging from -25°C to +70°C, have international approvals, and accept a wide variety of voltage input.
  • They can therefore be used for a variety of purposes.
  • This also covers signal and telecommunications systems, and also systems for automation with minimal power requirements of up to 96 Watts.

Specifications weights and dimensions:

  • Depth: 60 mm.
  • Height: 90 mm.
  • Width: 72 mm.
  • Net weight: 256 g.

Temperatures:

  • Storage temperature range: -40°C - 85°C.
  • Operating temperature range: -25°C - 70°C.

Input:

  • AC current consumption: 0.5 A @ 230 V AC / 1.0 A @ 100 V AC.
  • AC input voltage range: 85 - 264 V AC (derating at 100 V AC).
  • Connection system: PUSH IN with actuator.
  • DC current consumption: 0.2 A @ 370 V DC / 0.5 A @ 120 V DC.
  • DC input voltage range: 95 - 370 V DC.
  • Frequency range AC: 45 - 65 Hz.
  • Input fuse (internal): Yes.
  • Inrush current maximum: 40 A.
  • Nominal power consumption: 36.6 VA.
  • Rated input voltage: 110 - 240 V AC / 120 - 340 V DC.
  • Recommended back-up fuse: 2 A / DI, safety fuse 6 A, Char. B, circuit breaker 2 - 4 A, Char. C circuit breaker.
  • Wire connection method: PUSH IN with actuator.

Output:

  • Capacitive load: unrestricted.
  • Connection system: PUSH IN.
  • Continuous output current @ UNominal: 6 A @ 55 °C, 3.75 A @ 70 °C.
  • Nominal output current for Unom: 6 A @ 55 °C.
  • Output current, maximum: 6 A.
  • Output power: 30 W.
  • Output voltage, maximum: 7 V.
  • Output voltage, minimum: 4 V.
  • Output voltage, note: (adjustable via potentiometer on front).
  • Ramp-up time: ≤ 100 ms.
  • Rated output voltage: 5 V DC ± 2 %.
  • Residual ripple, breaking spikes: < 50 mVss @ UNenn, Full Load.
  • Wire connection method: PUSH IN with actuator.

General data:

  • Degree of efficiency: 82%.
  • Housing version: Plastic, protective insulation.
  • Mounting position, installation notice: Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load.
  • MTBF:
    • According to Standard: Telcordia SR-332.
    • Operating time (hours), minimum: 896,000 h.
    • Ambient temperature: 25 °C.
    • Input voltage: 230 V.
    • Output power: 30 W.
    • Duty cycle: 100 %.
    • According to Standard: Telcordia SR-332.
    • Operating time (hours), minimum: 427,000 h.
    • Ambient temperature: 40 °C.
    • Input voltage: 230 V.
    • Output power: 30 W.
    • Duty cycle: 100 %.
  • Power loss, idling: 0.45 W.
  • Power loss, nominal load: 5.4 W.
  • Protection against reverse voltages from the load: 8 - 10 V DC.
  • Protection degree: IP20.
  • Short-circuit protection: Yes, internal.
  • Start-up: ≥ -40 °C.

EMC / shock / vibration:

  • Interference immunity test according to: EN 61000-4-2 (ESD)| EN 61000-4-3 and EN 61000-4-8 (fields)| EN 61000-4-4 (burst)| EN 61000-4-5 (surge)| EN 61000-4-6 (conducted)| EN 61000-4-11 (dips) EN 61000-4-11 (Dips).
  • Limiting of mains voltage harmonic currents: EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)| EN 61000-4-4 (burst)| EN 61000-4-5 (surge)| EN 61000-4-6 (conducted)| EN 61000-4-11 (dips) EN 61000-4-11 (Dips).
  • Noise emission in accordance with EN55032: Class B.
  • Shock resistance IEC 60068-2-27: 15 g in all directions.
  • Vibration resistance IEC 60068-2-6: 2.3 g.

Insulation coordination:

  • Insulation voltage input / earth: 3.5 kV.
  • Insulation voltage output / earth: 0.5 kV.
  • Insulation voltage, input/output: 4 kV.
  • Pollution severity: 2.
  • Protection class: II.

Electrical safety (applied standards):

  • Electrical machine equipment: According to EN60204.
  • For use with electronic equipment: According to EN50178 / VDE0160.
  • Protection against dangerous shock currents: According to VDE0106-101.
  • Protective separation / protection against electrical shock: VDE0100-410 / according to DIN57100-410.
  • Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
  • Safety transformers for switch-mode power supplies: According to EN 61558-2-16.

Connection data (input):

  • Conductor cross-section, AWG/kcmil, maximum: 12.
  • Conductor cross-section, AWG/kcmil, minimum: 24.
  • Conductor cross-section, flexible, minimum: 0.25 mm².
  • Conductor cross-section, rigid, maximum: 2.5 mm².
  • Conductor cross-section, rigid, minimum: 0.25 mm².
  • Connection system: PUSH IN with actuator.
  • Number of terminals: 2 (L, N).
  • Wire connection cross section, flexible (input), max.: 2.5 mm².

Connection data (output):

  • Conductor cross-section, AWG/kcmil, maximum: 12.
  • Conductor cross-section, AWG/kcmil, minimum: 24.
  • Conductor cross-section, flexible, maximum: 2.5 mm².
  • Conductor cross-section, flexible, minimum: 0.25 mm².
  • Conductor cross-section, rigid, maximum: 2.5 mm².
  • Conductor cross-section, rigid, minimum: 0.25 mm².
  • Connection system: PUSH IN.
  • Number of terminals: 4 (++ / --).

Signalling:

  • LED green: Operating voltage OK.

Approbations:

  • Certificate no. (cULus): E258476.
  • Institute (cULus): CULUS.
More Information
Brand Weidmuller
