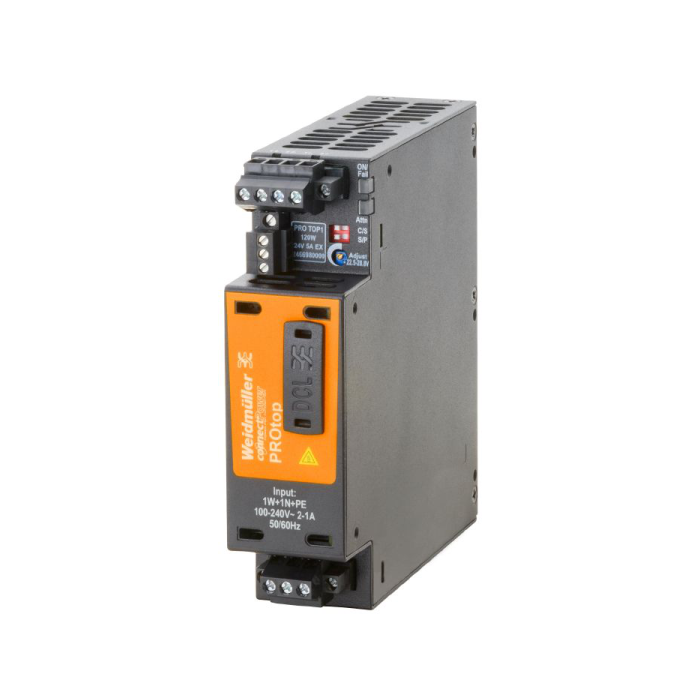

PRO TOP 1 120W 24V 5A EX:

  • Production procedures must always be optimized for efficiency.
  • In addition to performance, energy efficiency and sustainability are becoming increasingly crucial in cutting-edge industries.
  • PROtop power supplies combine great performance statistics with exemplary sustainability, increasing overall manufacturing facility productivity.
  • PROtop provides a number of benefits that give you a distinct competitive advantage.
  • High efficiency lead to lower energy costs and increased plant availability through longer service life and MTBF values.
  • Furthermore, there is a high functional density due to the exceptionally space-efficient designs.
  • PROtop can save significantly more than conventional power supply devices.
  • Its higher efficiency saves an average of 50 kWh per day in a medium-sized production facility with around 100 PROtop power supply operating on three shifts.
  • This adds up to over 15,000 kWh each year while also lowering the facility's carbon footprint.
  • The service life, which is twice as long as that of typical power supply, also minimizes repurchase and exchange expenses over time.

Dimensions and weights:

  • Depth: 125 mm.
  • Depth (inches): 4.921 inch.
  • Height: 130 mm.
  • Height (inches): 5.118 inch.
  • Width: 35 mm.
  • Width (inches): 1.378 inch.
  • Net weight: 850 g.

Temperatures:

  • Storage temperature: -40 °C - 85 °C.
  • Operating temperature: -40 °C - 70 °C.
  • Humidity at operating temperature: 5 - 100 % no condensation.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1.
  • SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.

Input:

  • AC input voltage range: 85 - 277 V AC.
  • Connection system: Clamping yoke.
  • Current consumption in relation to the input voltage:
    • Voltage type: AC.
    • Input voltage: 100 V.
    • Input current: 2 A.
    • Voltage type: DC.
    • Input voltage: 120 V.
    • Input current: 2 A.
  • DC input voltage range: 48 - 410 V DC (Derating 40% @ 48 V DC).
  • Frequency range AC: 45 - 65 Hz.
  • Input fuse (internal): Yes.
  • Inrush current: max. 5 A.
  • Nominal power consumption: 131.9 VA.
  • Rated input voltage: 110 - 240 V AC / 120 - 340 V DC.
  • Recommended back-up fuse: 5 A, DI / 6 A, Char. B / 6 A, Char C.
  • Surge protection: Varistor.

Output:

  • Connection system: Clamping yoke connection.
  • DCL - peak load reserve:
    • Boost duration: 5 s.
    • Multiple of the rated current: 150 %.
    • Boost duration: 15 ms.
    • Multiple of the rated current: 600 %.
  • Mains failure bridge-over time: > 20 ms @ 115V AC/ 230 VAC.
  • Nominal output current for Unom: 5 A @ 60 °C.
  • Output power: 120 W.
  • Output voltage, max.: 28.8 V.
  • Output voltage, min.: 22.5 V.
  • Output voltage, note: adjustable with potentiometer or comunication module.
  • Parallel connection option: yes, max 10.
  • Protection against inverse voltage: Yes.
  • Ramp-up time: ≤ 100 ms.
  • Rated output voltage: 24 V DC ± 1 %.
  • Residual ripple, breaking spikes: <50 mVss @ UNenn, Full Load.

General data:

  • AC failure bridging time @ Inom: > 20 ms @ 230 V AC / > 20 ms @ 115 V AC.
  • Conformal coating: Yes.
  • Degree of efficiency: 91%.
  • Derating: > 60°C (2.5% / 1°C).
  • Earth leakage current, max.: 3.5 mA.
  • Housing version: Metal, corrosion resistant.
  • MTBF:
    • According to Standard: SN 29500.
    • Operating time (hours), min.: 1,900,000 h.
    • Ambient temperature: 25 °C.
    • Input voltage: 230 V.
    • Output power: 120 W.
    • Duty cycle: 100 %.
    • According to Standard: SN 29500.
    • Operating time (hours), min.: 924,000 h.
    • Ambient temperature: 40 °C.
    • Input voltage: 230 V.
    • Output power: 120 W.
    • Duty cycle: 100 %.
  • Power factor (approx.): > 0.85.
  • Power loss, idling: 5 W.
  • Power loss, nominal load: 11.8 W.
  • Protection degree: IP20.
  • Short-circuit protection: Yes, internal.
  • Surge voltage category: III, II.

EMC / shock / vibration:

  • Interference immunity test acc. to: EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011.
  • Noise emission in accordance with EN55032: Class B.
  • Shock resistance IEC 60068-2-27: 30 g in all directions.
  • Vibration resistance IEC 60068-2-6: 2.3 g (on DIN rail), 4 g (with direct mounting).

Insulation coordination:

  • Insulation voltage input / earth: 3.2 kV.
  • Insulation voltage output / earth: 0.5 kV.
  • Insulation voltage, input/output: 3.5 kV.
  • Pollution severity: 2.
  • Protection class: I, with PE connection.
  • Surge voltage category: III, II.

Electrical safety (applied standards):

  • Electrical machine equipment: Acc. to EN60204.
  • For use with electronic equipment: Acc. to EN50178 / VDE0160.
  • Protection against dangerous shock currents: Acc. to VDE0106-101.
  • Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
  • Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
  • Safety transformers for switch-mode power supplies: According to EN 61558-2-16.

Connection data (input):

  • Conductor cross-section, AWG/kcmil, max.: 12 AWG.
  • Conductor cross-section, AWG/kcmil, min.: 30 AWG.
  • Conductor cross-section, flexible, min.: 0.2 mm².
  • Conductor cross-section, rigid, max.: 4 mm².
  • Conductor cross-section, rigid, min.: 0.2 mm².
  • Connection system: Clamping yoke.
  • Number of terminals: 3 for L/N/PE.
  • Screwdriver blade: 0.6 x 3.5.
  • Wire connection cross section, flexible (input), max.: 4 mm².

Connection data (output):

  • Conductor cross-section, AWG/kcmil, max.: 12 AWG.
  • Conductor cross-section, AWG/kcmil, min.: 30 AWG.
  • Conductor cross-section, flexible, max.: 4 mm².
  • Conductor cross-section, flexible, min.: 0.2 mm².
  • Conductor cross-section, rigid, max.: 4 mm².
  • Conductor cross-section, rigid, min.: 0.2 mm².
  • Connection system: Clamping yoke connection.
  • Number of terminals: 5 (+ + / - - -).
  • Screwdriver blade: 0.6 x 3.5.

Connection data (signal):

  • Wire connection cross-section, flexible (signal), max.: 1.5 mm².
  • Wire connection cross-section, flexible (signal), min.: 0.2 mm².
  • Wire connection method: Screw connection.
  • Wire cross-section, AWG/kcmil, max.: 16.
  • Wire cross-section, AWG/kcmil, min.: 28 mm².
  • Wire cross-section, solid, max.: 1.5 mm².
  • Wire cross-section, solid, min.: 0.2 mm².

Signalling:

  • Floating contact: Yes.
  • LED green/red: Green: Operation (failure-free).
  • Flashing green: advance warning I>90%.
  • Green/red flashing: output switched off (switch-off mode).
  • Flashing red: overload/error.
  • Status relay (max. load): Output voltage OK (30 V DC / 1 A).

Approbations:

  • Certificate no. (cULus): E258476.
  • Certificate no. (cULusEX): E470829.
  • Institute (cULus): CULUS.
  • Institute (cULusEX): CULUSEX.
