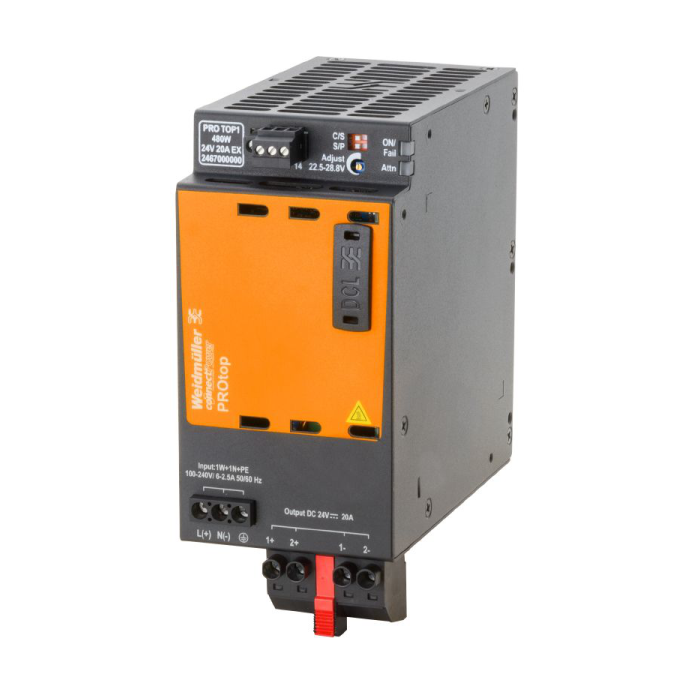

PRO TOP1 480W 24V 20A EX

Be the first to review this product

ZAR 9,418.50

Out of stock

SKU

2467000000

PRO TOP1 24V/20A 480W EX:

Production procedures must always be made more effective.
As well as performance, energy efficiency and sustainability are becoming increasingly crucial in cutting-edge industries.
The productivity of the entire production plant is positively impacted by PROtop power supplies' exceptional performance statistics and superior sustainability.
PROtop provides a number of benefits that give you a distinct competitive advantage.
Superior efficiency can led to reduced energy expenses and improved plant availability through long service life and high MTBF values.
Furthermore, there is a high functional density due to the exceptionally space-efficient designs.
PROtop can save a lot of money in comparison to traditional power supply units.
Its higher efficiency saves an average of 50 kWh per day in a medium-sized production facility with around 100 PROtop power supply operating on three shifts.
This adds up to over 15,000 kWh each year while also lowering the facility's carbon footprint.
The service life, which is twice as long as that of typical power supply, also minimizes repurchase and exchange expenses over time.

Specifications dimensions and weights:

DEPTH: 125 MM.
DEPTH (INCHES): 4.921 INCH.
HEIGHT: 130 MM.
HEIGHT (INCHES): 5.118 INCH.
WIDTH: 68 MM.
WIDTH (INCHES): 2.677 INCH.
NET WEIGHT: 1,520 G.

TEMPERATURES:

STORAGE TEMPERATURE: -40 °C - 85 °C.
OPERATING TEMPERATURE: -40 °C - 70 °C.
HUMIDITY AT OPERATING TEMPERATURE: 5 - 100 % NO CONDENSATION.

ENVIRONMENTAL PRODUCT COMPLIANCE:

REACH SVHC: LEAD 7439-92-1.
SCIP: 6D8CDF22-8230-4AF8-86C8-3558C716666D.

ESHOP_FILTER_02_03_POWER_SUPPLIES:

PRODUCT TYPE: POWER SUPPLY, SWITCH-MODE POWER SUPPLY UNIT.

INPUT:

AC INPUT VOLTAGE RANGE: 85 - 277 V AC.
CONNECTION SYSTEM: CLAMPING YOKE.
CURRENT CONSUMPTION IN RELATION TO THE INPUT VOLTAGE:

VOLTAGE TYPE: AC.
INPUT VOLTAGE: 100 V.
INPUT CURRENT: 6 A.
VOLTAGE TYPE: DC.
INPUT VOLTAGE: 120 V.
INPUT CURRENT: 6 A.

DC INPUT VOLTAGE RANGE: 80 - 410 V DC.
FREQUENCY RANGE AC: 45 - 65 HZ.
INPUT FUSE (INTERNAL): YES.
INRUSH CURRENT: MAXIMUM 5 A.
NOMINAL POWER CONSUMPTION: 516.1 VA.
RATED INPUT VOLTAGE: 110 - 240 V AC / 120 - 340 V DC.
RECOMMENDED BACK-UP FUSE: 8 A (DI) / 10 A (CHAR.B), 8 A (CHAR.C).
SURGE PROTECTION: VARISTOR.

OUTPUT:

CONNECTION SYSTEM: CLAMPING YOKE CONNECTION.
DCL - PEAK LOAD RESERVE:
BOOST DURATION: 5 S.

MULTIPLE OF THE RATED CURRENT: 150 %.
BOOST DURATION: 15 MS.
MULTIPLE OF THE RATED CURRENT: 500 %.

MAINS FAILURE BRIDGE-OVER TIME: > 20 MS @ 115V AC/ 230 VAC.
NOMINAL OUTPUT CURRENT FOR UNOM: 20 A @ 60 °C.
OUTPUT POWER: 480 W.
OUTPUT VOLTAGE, MAXIMUM: 28.8 V.
OUTPUT VOLTAGE, MINIMUM: 22.5 V.
OUTPUT VOLTAGE, NOTE ADJUSTABLE WITH POTENTIOMETER OR COMMUNICATION MODULE.
PARALLEL CONNECTION OPTION: YES, MAXIMUM 10.
PROTECTION AGAINST INVERSE VOLTAGE: YES.
RAMP-UP TIME: ≤ 100 MS.
RATED OUTPUT VOLTAGE: 24 V DC ± 1 %.
RESIDUAL RIPPLE, BREAKING SPIKES: <50 MVSS @ UNENN, FULL LOAD.

GENERAL DATA:

AC FAILURE BRIDGING TIME @ INOM: > 20 MS @ 230 V AC / > 20 MS @ 115 V AC.
CONFORMAL COATING: YES.
DEGREE OF EFFICIENCY: 93%.
DERATING: > 60°C (2.5% / 1°C).
EARTH LEAKAGE CURRENT, MAXIMUM: 3.5 MA.
HOUSING VERSION: METAL, CORROSION RESISTANT.
MTBF:

ACCORDING TO STANDARD: SN 29500.
OPERATING TIME (HOURS), MINIMUM: 1,220,000 H.
AMBIENT TEMPERATURE: 25 °C.
INPUT VOLTAGE: 230 V.
OUTPUT POWER: 480 W.
DUTY CYCLE: 100 %.
ACCORDING TO STANDARD: SN 29500.
OPERATING TIME (HOURS), MINIMUM: 554,000 H.
AMBIENT TEMPERATURE: 40 °C.
INPUT VOLTAGE: 230 V.
OUTPUT POWER: 480 W.
DUTY CYCLE: 100 %.

POWER FACTOR (APPROX.): > 0.9.
POWER LOSS, IDLING: 10 W.
POWER LOSS, NOMINAL LOAD: 36.1 W.
PROTECTION DEGREE: IP20.
SHORT-CIRCUIT PROTECTION: YES, INTERNAL.
SURGE VOLTAGE CATEGORY: II.

EMC / SHOCK / VIBRATION:

INTERFERENCE IMMUNITY TEST ACC.TO: EN 55032: 2015, EN 55024: 2010/A1: 2015, EN 55035: 2017, EN 61000-3-2: 2014, EN 61000-6-1: 2007, EN 61000-6-2: 2005, EN 61000-6-3: 2007/A1: 2011, EN 61000-6-4: 2007/A1: 2011.
NOISE EMISSION IN ACCORDANCE WITH EN55032: CLASS B.
SHOCK RESISTANCE IEC 60068-2-27: 30 G IN ALL DIRECTIONS.
VIBRATION RESISTANCE IEC 60068-2-6: 2.3 G (ON DIN RAIL) 4 G (WITH DIRECT MOUNTING).

INSULATION COORDINATION:

INSULATION VOLTAGE INPUT / EARTH: 3.2 KV.
INSULATION VOLTAGE OUTPUT / EARTH: 0.5 KV.
INSULATION VOLTAGE, INPUT/OUTPUT: 3.5 KV.
POLLUTION SEVERITY: 2.
PROTECTION CLASS: I, WITH PE CONNECTION.
SURGE VOLTAGE CATEGORY: II.

ELECTRICAL SAFETY (APPLIED STANDARDS):

ELECTRICAL MACHINE EQUIPMENT: ACC.TO EN60204.
FOR USE WITH ELECTRONIC EQUIPMENT: ACC.TO EN50178 / VDE0160.
PROTECTION AGAINST DANGEROUS SHOCK CURRENTS: ACC.TO VDE0106-101.
PROTECTIVE SEPARATION / PROTECTION AGAINST ELECTRICAL SHOCK: VDE0100-410 / ACC.TO DIN57100-410.
SAFETY EXTRA-LOW VOLTAGE: SELV ACC.TO IEC 60950-1, PELV ACCORDING TO EN 60204-1.
SAFETY TRANSFORMERS FOR SWITCH-MODE POWER SUPPLIES: ACCORDING TO EN 61558-2-16.

CONNECTION DATA (INPUT):

CONDUCTOR CROSS-SECTION, AWG/KCMIL, MAXIMUM: 10 AWG.
CONDUCTOR CROSS-SECTION, AWG/KCMIL, MINIMUM: 26 AWG.
CONDUCTOR CROSS-SECTION, FLEXIBLE, MINIMUM: 0.22 MM².
CONDUCTOR CROSS-SECTION, RIGID, MAXIMUM: 6 MM².
CONDUCTOR CROSS-SECTION, RIGID, MINIMUM: 0.18 MM².
CONNECTION SYSTEM: CLAMPING YOKE.
NUMBER OF TERMINALS: 3 FOR L/N/PE.
SCREWDRIVER BLADE: 0.8 X 4.0.
WIRE CONNECTION CROSS SECTION, FLEXIBLE (INPUT), MAXIMUM: 4 MM².

CONNECTION DATA (OUTPUT):

CONDUCTOR CROSS-SECTION, AWG/KCMIL, MAXIMUM: 8 AWG.
CONDUCTOR CROSS-SECTION, AWG/KCMIL, MINIMUM: 24 AWG.
CONDUCTOR CROSS-SECTION, FLEXIBLE, MAXIMUM: 6 MM².
CONDUCTOR CROSS-SECTION, FLEXIBLE, MINIMUM: 0.5 MM².
CONDUCTOR CROSS-SECTION, RIGID, MAXIMUM: 6 MM².
CONDUCTOR CROSS-SECTION, RIGID, MINIMUM: 0.2 MM².
CONNECTION SYSTEM: CLAMPING YOKE CONNECTION.
NUMBER OF TERMINALS: 5 (+ + / - - -).
SCREWDRIVER BLADE: 0.6 X 3.5.

CONNECTION DATA (SIGNAL):

WIRE CONNECTION CROSS-SECTION, FLEXIBLE (SIGNAL), MAXIMUM: 1.5 MM².
WIRE CONNECTION CROSS-SECTION, FLEXIBLE (SIGNAL), MINIMUM: 0.2 MM².
WIRE CONNECTION METHOD: SCREW CONNECTION.
WIRE CROSS-SECTION, AWG/KCMIL, MAXIMUM: 16.
WIRE CROSS-SECTION, AWG/KCMIL, MINIMUM: 28 MM².
WIRE CROSS-SECTION, SOLID, MAXIMUM: 1.5 MM².
WIRE CROSS-SECTION, SOLID, MINIMUM: 0.2 MM².

SIGNALLING:

FLOATING CONTACT: YES.
LED GREEN/RED: GREEN:&NBSP; OPERATION (FAILURE-FREE).
FLASHING GREEN:&NBSP; ADVANCE WARNING I>90%.
GREEN/RED FLASHING:&NBSP; OUTPUT SWITCHED OFF (SWITCH-OFF MODE).
FLASHING RED:&NBSP; OVERLOAD/ERROR.
STATUS RELAY (MAXIMUM LOAD): OUTPUT VOLTAGE OK (30 V DC / 1 A).

APPROBATIONS:

CERTIFICATE NO.(CULUS): E258476.
CERTIFICATE NO.(CULUSEX): E470829.
INSTITUTE (CULUS): CULUS.
INSTITUTE (CULUSEX): CULUSEX.
