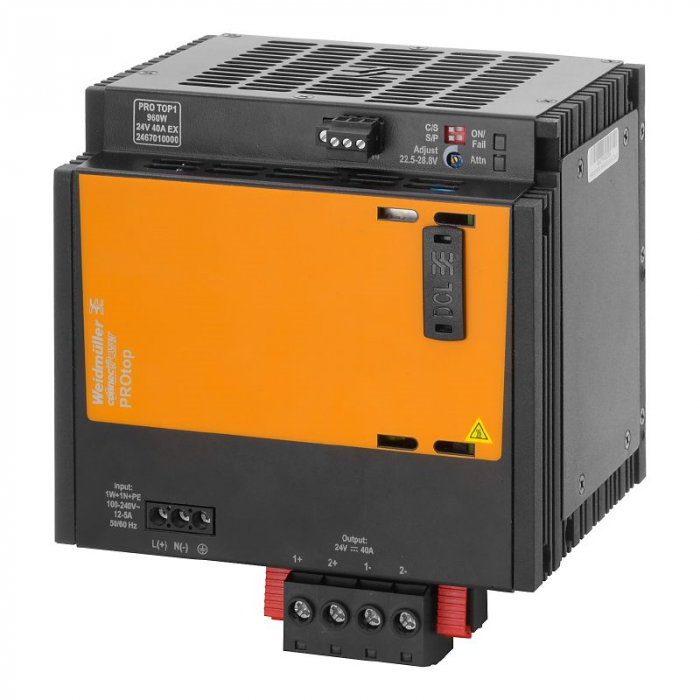

PRO TOP1 960W 24V 40A EX

Be the first to review this product

ZAR 17,007.12

Out of stock

SKU

2467010000

Switch-mode power supply unit with 24 V of power:

Production procedures must always be made more effective.
In addition to performance, energy efficiency and usability are becoming increasingly vital in the cutting-edge business.
The productivity of the entire production plant is positively impacted by PROtop power supplies' exceptional performance statistics and outstanding sustainability.
You can gain a significant competitive advantage from PROtop's many benefits.
These include the long-term savings in energy expenses due to high efficiency and the rise in plant availability because of long service lives and high MTBF values.
Furthermore, the exceptionally space-saving designs provide a high functional density.
PROtop can save a lot of money in comparison to traditional power supply units.
The increased efficiency saves an average of 50 kWh per day in a medium-sized production facility with 100 PROtop power supply operating in three shifts.
This adds up to over 15,000 kWh each year while also lowering the facility's carbon footprint.
The service life, which is twice as long as that of typical power supply, also minimizes repurchase and exchange expenses over time.

SPECIFICATIONS DIMENSIONS AND WEIGHTS:

DEPTH: 125 MM.
DEPTH (INCHES): 4.921 INCH.
HEIGHT: 130 MM.
HEIGHT (INCHES): 5.118 INCH.
WIDTH: 139 MM.
WIDTH (INCHES): 5.472 INCH.
NET WEIGHT: 3,382 G.

TEMPERATURES:

STORAGE TEMPERATURE: -40 °C - 85 °C.
OPERATING TEMPERATURE: -40 °C - 70 °C.
HUMIDITY AT OPERATING TEMPERATURE: 5 - 100 % NO CONDENSATION.

ENVIRONMENTAL PRODUCT COMPLIANCE:

REACH SVHC: LEAD 7439-92-1.
SCIP: 6D8CDF22-8230-4AF8-86C8-3558C716666D.

INPUT:

AC INPUT VOLTAGE RANGE: 85 - 277 V AC.
CONNECTION SYSTEM: CLAMPING YOKE.
CURRENT CONSUMPTION IN RELATION TO THE INPUT VOLTAGE: VOLTAGE TYPE:&NBSP; AC.
INPUT VOLTAGE:&NBSP; 100 V.
INPUT CURRENT:&NBSP; 12 A.
VOLTAGE TYPE:&NBSP; DC.
INPUT VOLTAGE:&NBSP; 120 V.
INPUT CURRENT:&NBSP; 12 A.
DC INPUT VOLTAGE RANGE: 80 - 410 V DC.
FREQUENCY RANGE AC: 45 - 65 HZ.
INPUT FUSE (INTERNAL): YES.
INRUSH CURRENT: MAXIMUM 15 A.
NOMINAL POWER CONSUMPTION: 1,021 VA.
RATED INPUT VOLTAGE: 110 - 240 V AC / 120 - 340 V DC.
RECOMMENDED BACK-UP FUSE: 16 A, DI / 16 A, CHAR.B / 16 A, CHAR C.
SURGE PROTECTION: VARISTOR.

OUTPUT:

CONNECTION SYSTEM: CLAMPING YOKE CONNECTION.
DCL - PEAK LOAD RESERVE: BOOST DURATION:&NBSP; 5 S.
MULTIPLE OF THE RATED CURRENT:&NBSP; 150 %.
BOOST DURATION:&NBSP; 15 MS.
MULTIPLE OF THE RATED CURRENT:&NBSP; 400 %.
MAINS FAILURE BRIDGE-OVER TIME: > 20 MS @ 115V AC/ 230 VAC.
NOMINAL OUTPUT CURRENT FOR UNOM: 40 A @ 60 °C.
OUTPUT POWER: 960 W.
OUTPUT VOLTAGE, MAXIMUM: 28.8 V.
OUTPUT VOLTAGE, MINIMUM: 22.5 V.
OUTPUT VOLTAGE, NOTE: ADJUSTABLE WITH POTENTIOMETER OR COMMUNICATION MODULE .
PARALLEL CONNECTION OPTION: YES, MAXIMUM 10.
PROTECTION AGAINST INVERSE VOLTAGE: YES.
RAMP-UP TIME: ≤ 100 MS.
RATED OUTPUT VOLTAGE: 24 V DC ± 1 %.
RESIDUAL RIPPLE, BREAKING SPIKES: <50 MVSS @ UNENN, FULL LOAD.

GENERAL DATA:

AC FAILURE BRIDGING TIME @ INOM: > 20 MS @ 230 V AC / > 20 MS @ 115 V AC.
CONFORMAL COATING: YES.
DEGREE OF EFFICIENCY: 94%.
DERATING: > 60°C (2.5% / 1°C).
EARTH LEAKAGE CURRENT, MAXIMUM: 3.5 MA.
HOUSING VERSION: METAL, CORROSION RESISTANT.
MTBF:

ACCORDING TO STANDARD:&NBSP; SN 29500.
OPERATING TIME (HOURS), MINIMUM:&NBSP; 1,040,000 H.
AMBIENT TEMPERATURE:&NBSP; 25 °C.
INPUT VOLTAGE:&NBSP; 230 V.
OUTPUT POWER:&NBSP; 960 W.
DUTY CYCLE:&NBSP; 100 %.
ACCORDING TO STANDARD:&NBSP; SN 29500.
OPERATING TIME (HOURS), MINIMUM:&NBSP; 466,900 H.
AMBIENT TEMPERATURE:&NBSP; 40 °C.
INPUT VOLTAGE:&NBSP; 230 V.
OUTPUT POWER:&NBSP; 960 W.
DUTY CYCLE:&NBSP; 100 %.

POWER FACTOR (APPROX.): > 0.9.
POWER LOSS, IDLING: 5 W.
POWER LOSS, NOMINAL LOAD: 61.3 W.
PROTECTION DEGREE: IP20.
SHORT-CIRCUIT PROTECTION: YES, INTERNAL.
SURGE VOLTAGE CATEGORY: III, II.

EMC / SHOCK / VIBRATION:

INTERFERENCE IMMUNITY TEST ACC.TO: EN 55032: 2015, EN 55024: 2010/A1: 2015, EN 55035: 2017, EN 61000-3-2: 2014, EN 61000-6-1: 2007, EN 61000-6-2: 2005, EN 61000-6-3: 2007/A1: 2011, EN 61000-6-4: 2007/A1: 2011.
NOISE EMISSION IN ACCORDANCE WITH EN55032: CLASS B.
SHOCK RESISTANCE IEC 60068-2-27: 30 G IN ALL DIRECTIONS.
VIBRATION RESISTANCE IEC 60068-2-6: 2.3 G (ON DIN RAIL).
4 G (WITH DIRECT MOUNTING).

INSULATION COORDINATION:

INSULATION VOLTAGE INPUT / EARTH: 3.2 KV.
INSULATION VOLTAGE OUTPUT / EARTH: 0.5 KV.
INSULATION VOLTAGE, INPUT/OUTPUT: 3.5 KV.
POLLUTION SEVERITY: 2.
PROTECTION CLASS: I, WITH PE CONNECTION.
SURGE VOLTAGE CATEGORY: III, II.

ELECTRICAL SAFETY (APPLIED STANDARDS):

ELECTRICAL MACHINE EQUIPMENT: ACC.TO EN60204.
FOR USE WITH ELECTRONIC EQUIPMENT: ACC.TO EN50178 / VDE0160.
PROTECTION AGAINST DANGEROUS SHOCK CURRENTS: ACC.TO VDE0106-101.
PROTECTIVE SEPARATION / PROTECTION AGAINST ELECTRICAL SHOCK: VDE0100-410 / ACC.TO DIN57100-410.
SAFETY EXTRA-LOW VOLTAGE: SELV ACC.TO IEC 60950-1, PELV ACCORDING TO EN 60204-1.
SAFETY TRANSFORMERS FOR SWITCH-MODE POWER SUPPLIES: ACCORDING TO EN 61558-2-16.

CONNECTION DATA (INPUT):

CONDUCTOR CROSS-SECTION, AWG/KCMIL, MAXIMUM: 10 AWG.
CONDUCTOR CROSS-SECTION, AWG/KCMIL, MINIMUM: 26 AWG.
CONDUCTOR CROSS-SECTION, FLEXIBLE, MINIMUM: 0.22 MM².
CONDUCTOR CROSS-SECTION, RIGID, MAXIMUM: 6 MM².
CONDUCTOR CROSS-SECTION, RIGID, MINIMUM: 0.18 MM².
CONNECTION SYSTEM: CLAMPING YOKE.
NUMBER OF TERMINALS: 3 FOR L/N/PE.
SCREWDRIVER BLADE: 0.8 X 4.0.
WIRE CONNECTION CROSS SECTION, FLEXIBLE (INPUT), MAXIMUM: 4 MM².

CONNECTION DATA (OUTPUT):

CONDUCTOR CROSS-SECTION, AWG/KCMIL, MAXIMUM: 6 AWG.
CONDUCTOR CROSS-SECTION, AWG/KCMIL, MINIMUM: 22 AWG.
CONDUCTOR CROSS-SECTION, FLEXIBLE, MAXIMUM: 16 MM².
CONDUCTOR CROSS-SECTION, FLEXIBLE, MINIMUM: 6 MM².
CONDUCTOR CROSS-SECTION, RIGID, MAXIMUM: 16 MM².
CONDUCTOR CROSS-SECTION, RIGID, MINIMUM: 0.2 MM².
CONNECTION SYSTEM: CLAMPING YOKE CONNECTION.
NUMBER OF TERMINALS: 5 (+ + / - - -).
SCREWDRIVER BLADE: 1.0 X 5.5.

CONNECTION DATA (SIGNAL):

WIRE CONNECTION CROSS-SECTION, FLEXIBLE (SIGNAL), MAXIMUM: 1.5 MM².
WIRE CONNECTION CROSS-SECTION, FLEXIBLE (SIGNAL), MINIMUM: 0.2 MM².
WIRE CONNECTION METHOD: SCREW CONNECTION.
WIRE CROSS-SECTION, AWG/KCMIL, MAXIMUM: 16.
WIRE CROSS-SECTION, AWG/KCMIL, MINIMUM: 28 MM².
WIRE CROSS-SECTION, SOLID, MAXIMUM: 1.5 MM².
WIRE CROSS-SECTION, SOLID, MINIMUM: 0.2 MM².

SIGNALLING:

FLOATING CONTACT: YES.
LED GREEN/RED: GREEN:&NBSP; OPERATION (FAILURE-FREE).
FLASHING GREEN:&NBSP; ADVANCE WARNING I>90%.
GREEN/RED FLASHING:&NBSP; OUTPUT SWITCHED OFF (SWITCH-OFF MODE).
FLASHING RED:&NBSP; OVERLOAD/ERROR.
STATUS RELAY (MAXIMUM LOAD): OUTPUT VOLTAGE OK (30 V DC / 1 A).

APPROBATIONS:

CERTIFICATE NO.(CULUS): E258476.
CERTIFICATE NO.(CULUSEX): E470829.
INSTITUTE (CULUS): CULUS.
INSTITUTE (CULUSEX): CULUSEX.
