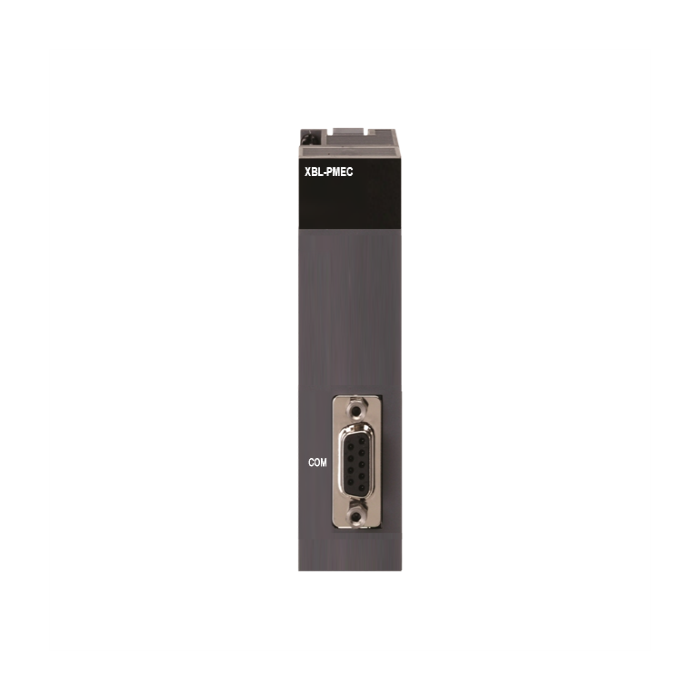

XGB Communication Module Profibus-DP Master, RS485
Description:
- Profibus-DP is an appropriate network for Field Level's FA environment and supports Profibus-DP V0 and V1 protocols.
- It works well for communicating with dispersed slave I/O devices and master devices.
Specifications:
- Module type: Slave
- Network type: Profibus-DP
- Standard: EN501170/DIN 19245
- Interface: RS-485 (Electric)
- Topology: Bus type
- Modulation type: NRZ (Non-Return to Zero)
- Protocol: Profibus DP-V0
- Max. number of stations per segment: 32 (including master and repeater)
- Cable used: Electric twist shielded pair cable.
- Max. communication size: Input: 122-word, Output: 122 words
- Max, communication size per block: Input: 64-word, Output: 64 words
- Communication transmission cycle: 10/20/50/100/200/500ms, 1/5/10s
- Max. number of units installed: 2 units.
- Communication parameters to set: XG5000 (setting station and high-speed link parameter block)
- Internal-consumed current (Ma): 300
| Brand | LS Electric |
|---|
