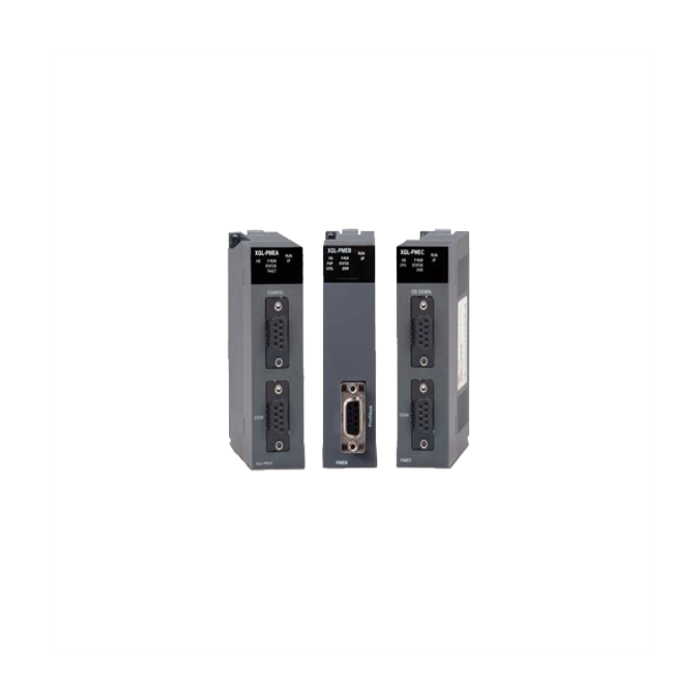

XGT Network Module, Profibus-DP [Pnet] system, Slave, EN50170 / DIN 19245
Features:
- Protocol for Profibus-DP.
- Communicates with a distributed slave I/O device and a master automation device.
- Without an application layer, quick slave communication is possible.
- Speed of transmission: 9.6 Kbps to 12 Mbps.
- Maximum transmission distance: 1,200 meters.
- 32 slave stations each segment, with a maximum of 126 slave stations accessible.
- N Configurator/XG5000 is used for network configuration (diagnostic, monitoring, and parameter setting).
- Master station I/O data: 7 kbytes.
- Network slave modules are automatically monitored by Auto-scan (XG5000).
- Multi-master.
- N Configurator/XG5000 is an easy configuration tool.
Specifications:
- Standard: EN50170/DIN19245
- Interface: RS-485 (Electric)
- Media access: Polling
- Topology: Bus
- Modulation: NRZ
- Network interface: Auto baud rate.
- Master/slave: slave
- Max. number of slave per network: 99
- Max. number of slave per segment: 32
- Cable: shielded twisted pair cable
- Max. I/O data 244 byte
- Configuration tool: XG5000
- Max. number of node: 99 (0-98)
- Max. number of transmission block: 24
- Current consumption: 410mA
| Brand | LS Electric |
|---|
