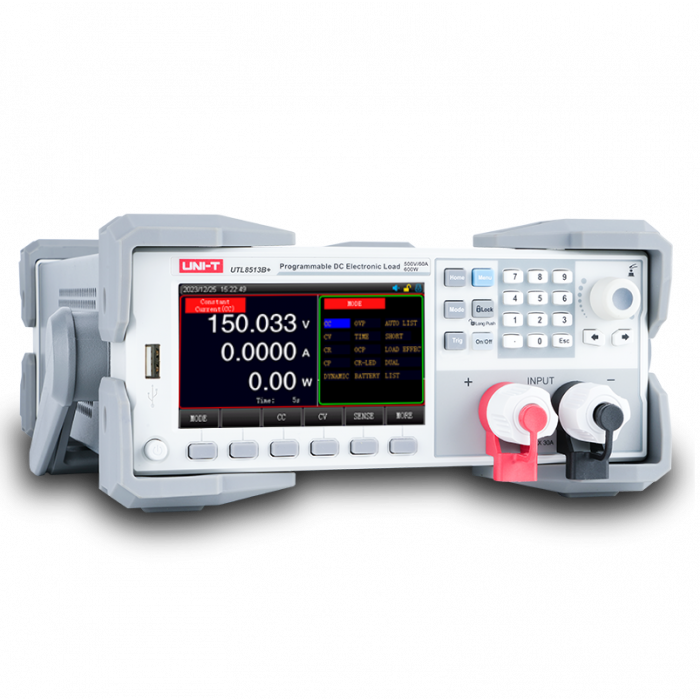

Programmable DC Electronic Load UTL8511B+, (500V, 15A, 200W)
UTL8500X+ Series, Programmable DC Electronic Loads:
- A new generation of intelligent, large-screen, and reasonably priced electronic loads is the UTL8500X+ series DC electronic load.
- Simultaneous sampling up to 500 KHz and high-performance DSP processing.
- The majority of R&D and testing requirements are satisfied by the quick, effective, and user-friendly LIST programmable automatic test mode.
- You can flexibly organize your tests in any of the 15 different test settings.
- To assist you with automated measurement, feel free to modify test items in List mode.
- Waveform display and ripple measurement for improved power testing.
- The issue of inaccurate display in long-distance tests is resolved via remote compensating.
Specifications:
- UTL8500X+ Series, Programmable DC Electronic Loads.
- Min. operating voltage 2.8V±0.2V at 15A.
- CV mode Range 0.1-50V, 0.1-500V.
- CC mode Range 0-1.5A, 0-15A.
- CR mode Range 0.05Ω-10Kω.
- CP mode Range 200W.
- Ripple display yes.
- Interface protocol RS232 interface and SCPI protocol.
- Power 110V/220V, 50/60Hz.
- Display 4.3-inch LCD.
- Product size (W×H×D) 215mm x 88mm x 372mm.
| SKU | UTL8511B-Plus |
|---|---|
| Brand | UNI-T |
