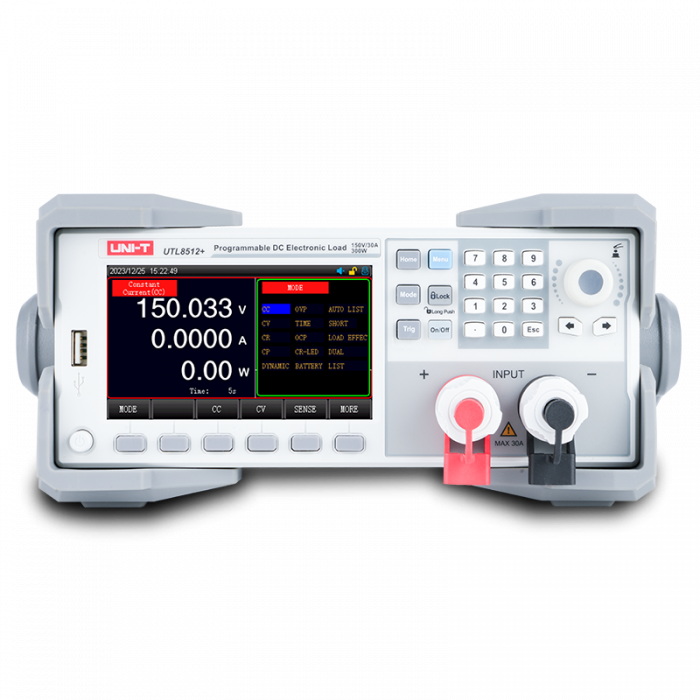

Programmable DC Electronic Loads UTL8512+, (150V, 30A,300W)
UTL8500+ Series, Programmable DC Electronic Loads:
- A new generation of intelligent, large-screen, and reasonably priced electronic loads is the UTL8500+ series DC electronic load.
- Simultaneous sampling up to 500KHz and high-performance DSP processing.
- The majority of R&D and testing requirements are satisfied by the quick, effective, and user-friendly LIST programmable automatic test mode.
- You can flexibly organize your tests in any of the 15 different test settings.
- To assist you with automated measurement, feel free to modify test items in List mode.
- Your battery testing will go much more smoothly with the help of the battery discharge curve and a number of customizable battery mode parameters.
- Clear parameter and status display on a 4.3-inch LCD screen.
Specifications:
- UTL8500+ Series, Programmable DC Electronic Loads.
- CV mode Range 0.1-15V 0.1-150V.
- CC mode Range 0-3A 0-30A.
- CR mode Range 0.05Ω-10KΩ.
- CP mode Range 300W.
- Over-temperature protection ≥85° C.
- Ripple display yes.
- Waveform record no.
- Input terminal resistance 300KΩ.
- Interface protocol RS232 interface and SCPI protocol.
- Power 110V/220V, 50/60Hz.
- Display 4.3-inch LCD.
- Product size (W×H×D) 215mm x 88mm x 372mm.
| SKU | UTL8512-Plus |
|---|---|
| Brand | UNI-T |
