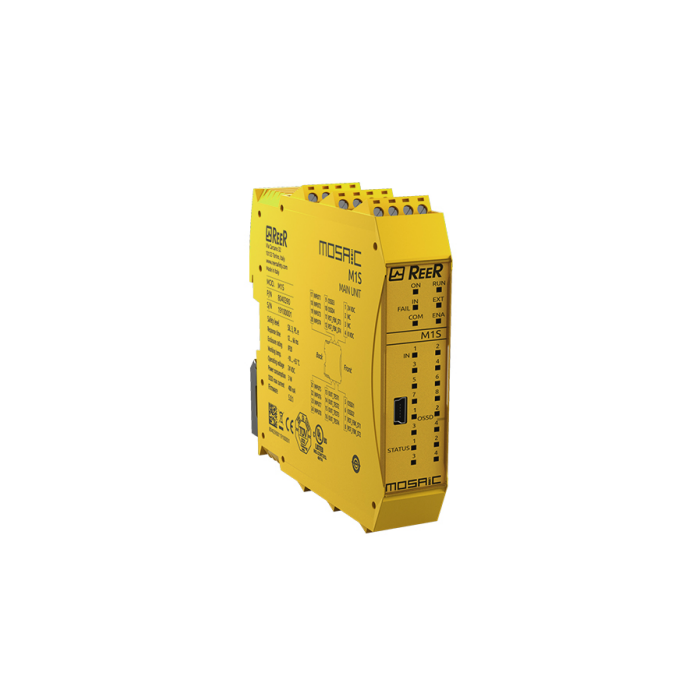

PROGRAMMABLE ENCHANCED MAIN UNIT
MOSAIC - Safety controllers:
- MOSAIC is a modular safety controller that may be configured to control any aspect of a machine or plant's safety.
- Composed of a master unit that can manage up to 14 extension units in a system or function as a stand-alone device.
Capable of monitoring several safety sensors and signals such as:
- Light curtains.
- Photocells.
- Laser scanners.
- Emergency stops.
- Electromechanical switches.
- Safety door switches.
- Magnetic switches.
- Safety mats and edges.
- Two-hand controls.
- Hand grip switches.
- Encoders and proximities for safety speed control.
- Load cells.
- Pressure switches.
- Temperature, flow and level measurements.
General features:
- Power supply: 24V DC ± 20%.
- Safety level: SIL 3, PL e, SILCL 3, Cat. 4.
- Connections: Removable (screw terminal) blocks.
- Dimensions: (H) 99 x (W) 22.5 x (D) 114 mm.
- Mounting: DIN rail mounting according to EN 50022-35 standard.
Specifications:
- Series: Mosaic.
- Description: Main unit, also usable as a stand-alone device, able to control any other expansion units.
- Operating temperature: -10 ... 55 °C.
- Storage temperature: - 20 ... 85 °C.
- Safety level: Safety level: sil 3 mm silcl 3 mm pl e mm cat. 4.
- Mounting: Din rail mounting.
- Dimensions (mm): (h) 99 x (w) 22.5 X (d) 114 mm.
Advantages:
- Tamper-proof system configuration Reduced control panel dimension, design and construction time Logic configured via graphic interface, eliminating laborious wiring as with traditional solutions.
- Simulation function allows to validate system functionality without connecting to a machine.
| Brand | Reer |
|---|
