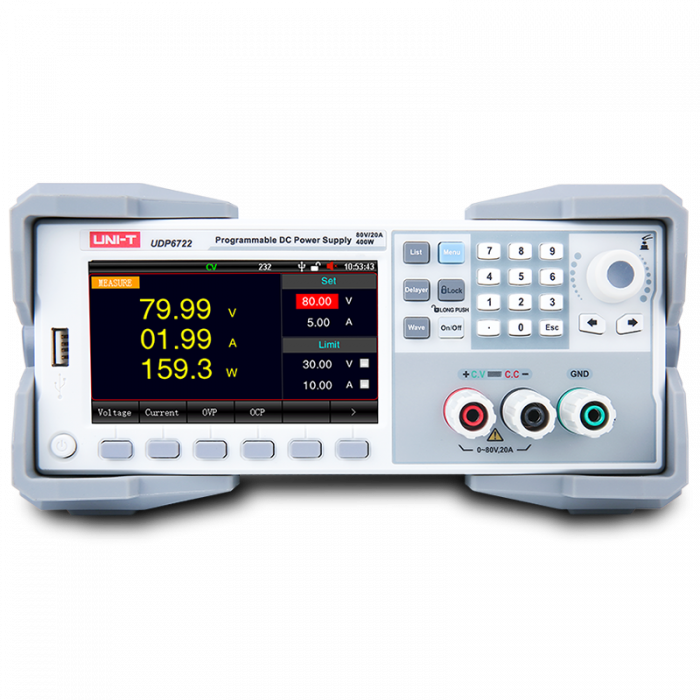

Programmable Switching Power Supplies, UDP6723, DC, 1-Channel
UDP6720 Series, Programmable Switching Power Supplies:
- Wide-ranging production.
- High-precision four-digit voltage/current display.
- 10 mV/10 mA is the resolution.
- Multiple OVP, OCP, and OTP safeguards.
- It is possible to set the protection value for overvoltage and overcurrent.
- Function for remote compensation.
- 4.3" TFT LCD with genuine colour.
- Save and remember one hundred configurations.
- USB, LAN, RS232, and RS485.
- Protocol SCPI/MODBUS-RTU.
- There are 200 List/Delay sets.
- Waveform visualization.
- U-Disk recording and updating.
Specifications:
- UDP6720 Series, Programmable Switching Power Supplies.
- Output voltage 0-80V.
- Output current 0-40A.
- Output power 850W.
- Standard interfaces RS232, RS485, USB Host, USB Device, LAN.
- Power AC:220(±10%) V, 50Hz/60Hz.
- Display 4.3-inch TFT LCD.
- Product net weight 5.9kg.
- Product size (W×H×D) 215mm×88mm×475mm.
- Resolution Voltage 10mV.
- Resolution Current 10Ma.
| SKU | UDP6723 |
|---|---|
| Brand | UNI-T |
