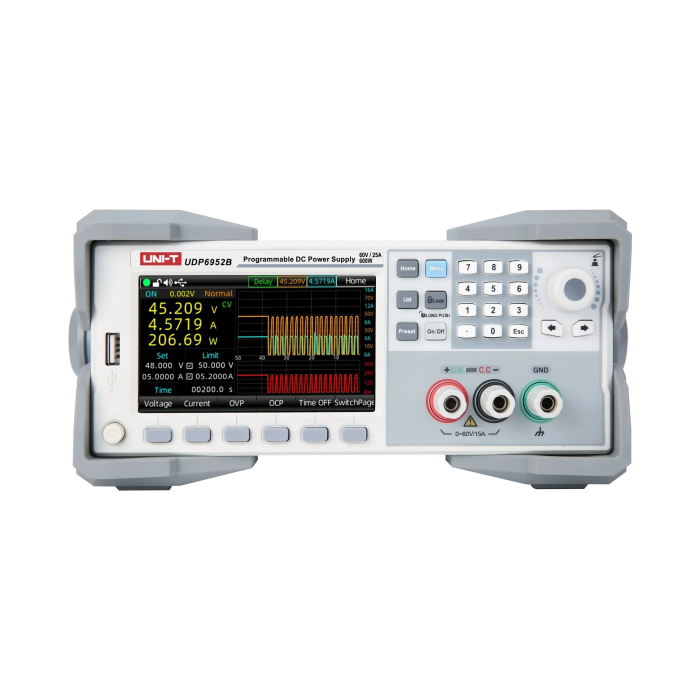

Programmable Switching Power Supplies, UDP6952B 600W DC Switching Power Supply 60V/25A

ZAR 0.00 ZAR 0.00
Out of stock
SKU
UDP6952B

UDP6900 Series, Programmable Switching Power Supplies:

  • 4.3" TFT true colour LCD.
  • High accuracy and resolution.
  • List and delay.
  • Timing output from 0.1 to 99999.9 seconds can be set.
  • Intelligent fan control.
  • The remote compensation function.
  • Both the front and back panels have twin outputs.
  • There are many communication ports, including RS232, RS485, USB, and LAN.
  • Supports both the SCPI and Modbus RTU protocols.
  • External Analog Control versus External Digital Control.
  • Built-in 4.5-digit digital voltmeter for easy external measuring.
  • Multiple protections: over-temperature, over-power, and over-voltage.
  • Overcurrent protection settings can be specified.
  • Support for 18x8 group preset saving and recall.
  • High power factor with minimal harmonic interference to the electrical grid.
  • The waveform displays the output trend.
  • The LAN interface provides web remote control.

Specifications:

  • UDP6900 Series, Programmable Switching Power Supplies.
  • Channels 1Ch.
  • Max V DC 60V.
  • Max A DC 25A.
  • Watts 600W.
  • Max V Resolution 1mV.
  • Max A Resolution 0.1mA.
  • Programmable true.
  • Warranty 3 years.
  • Product Dimensions (L x W x H) 15 in x 8.5 in x 3.5 in.
  • Product Weight 15 lb.
More Information
SKU UDP6952B
Brand UNI-T
