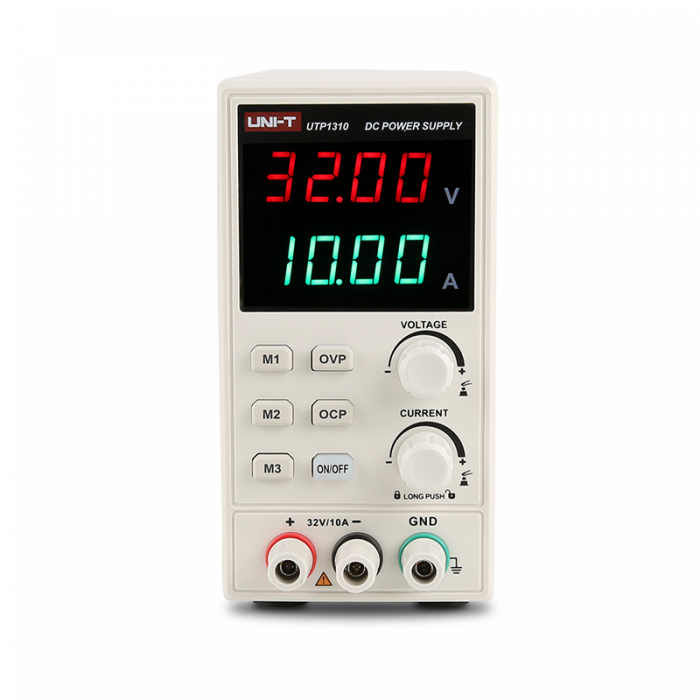

Programmable Switching Power Supplies, UTP1310 Switching DC Power Supply (1-Channel, 32V,10A)

ZAR 0.00 ZAR 0.00
Out of stock
SKU
UTP1310

UTP1000 Series, Programmable Switching Power Supplies:

  • The UTP1300 series power supply is a cost-effective switch-type DC regulated power supply with a single output.
  • It provides a pure output, outstanding performance indications, and can suit a wide range of testing requirements.
  • Used for product debugging and maintenance, quality control and testing, automated production testing, training trials, and so on.
  • A single output.
  • Output: 32V, 6A/10A.
  • Resolution: 10 mV/1 mA.
  • Overvoltage/current protection.
  • Three categories of one-key recall of stored data.
  • The overcurrent/voltage protection value can be set.
  • Independent output switch.

Specifications:

  • UTP1000 Series, Programmable Switching Power Supplies.
  • Output voltage 0-32V.
  • Output current 0-10A.
  • Output power 320W.
  • Load regulation CV ≤0.1%+5mV.
  • Load regulation CC ≤0.2%+3mA.
  • Power regulation CV ≤0.01%+5mV.
  • Power regulation CC ≤0.2%+3mA.
  • Power Input voltage: 110V AC/220V AC, 50Hz-60Hz.
  • Display 4 digits LED.
  • Product size (W×H×D) 80mm x 150mm x 230mm.
More Information
SKU UTP1310
Brand UNI-T
