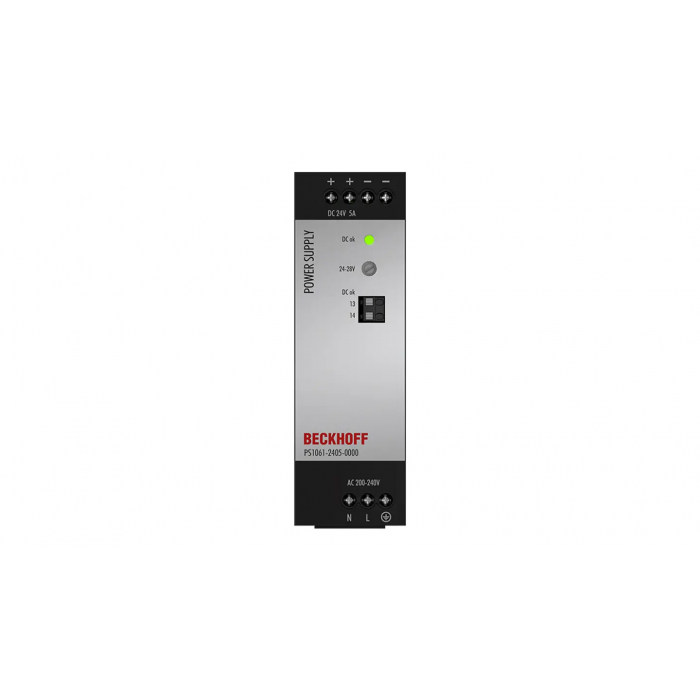

PS1061-2405-0000 Power supply PS1000
The power supply PS1061-2405-0000 is a single-phase, 24 V DC power supply with an output current of 5 A and an output power of 120 W. On the input side, the device has a local AC input and an inrush current surge regulation. The output operates according to the UI characteristic curve and switches to safe hiccup mode in case of overload/short circuit.
Input voltage: AC 200…240 V
Input current: typ. 1.06 A at 230 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 23 A peak at 230 V AC
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 5 A
Output: 120 W
DC OK LED: yes
Efficiency: approx. 90.5 %
Operating temperature: -10…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 350 g
Approvals/markings: CE, UL61010
Protection rating: IP20
| SKU | PS1061-2405-0000 |
|---|
