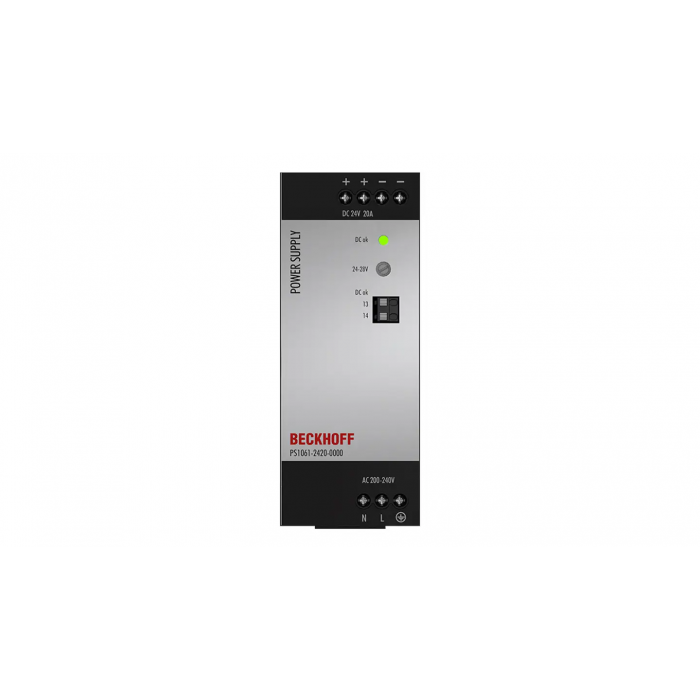

PS1061-2420-0000 Power supply PS1000
The power supply PS1061-2420-0000 is a single-phase, 24 V DC power supply with an output current of 20 A and an output power of 480 W. On the input side, the device has a local AC input, a power factor correction (PFC) and an inrush current surge regulation. The output operates according to the UI characteristic curve and switches to safe hiccup mode in case of overload/short circuit.
Input voltage: AC 200…240 V
Wide-range input: yes
Input current: typ. 2.2 A at 230 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 16 A peak at 230 V AC
Harmonic correction (PFC): active
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 20 A
Output: 480 W
DC OK LED: yes
Efficiency: approx. 95.7 %
Operating temperature: -25…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 620 g
Approvals/markings: CE, UL61010
Protection rating: IP20
| SKU | PS1061-2420-0000 |
|---|
