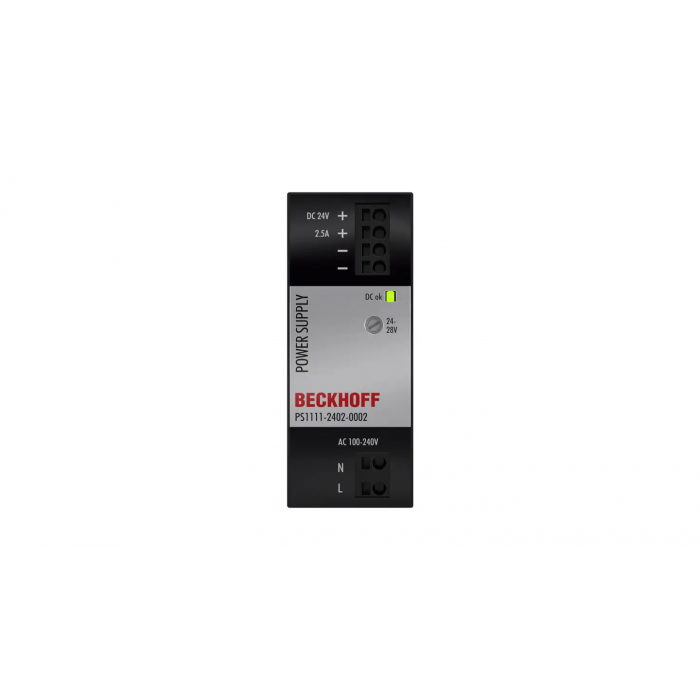

PS1111-2402-0002 Power supply PS1000
The power supply PS1111-2402-0002 is a single-phase, 24 V DC power supply with an output current of 2.5 A. On the input side, the device has a wide range input and an inrush current surge regulation. The output power is 60 W and meets NEC Class 2 requirements.
Input voltage: AC 100…240 V
Wide-range input: yes
Input current: typ. 0.6 A at 230 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 30 A peak at 230 V AC
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 2.5 A
Output: 60 W
DC OK LED: yes
Efficiency: approx. 91.8 %
Operating temperature: -10…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 220 g
Approvals/markings: CE, NEC Class 2, UL61010
Protection rating: IP20
| SKU | PS1111-2402-0002 |
|---|
