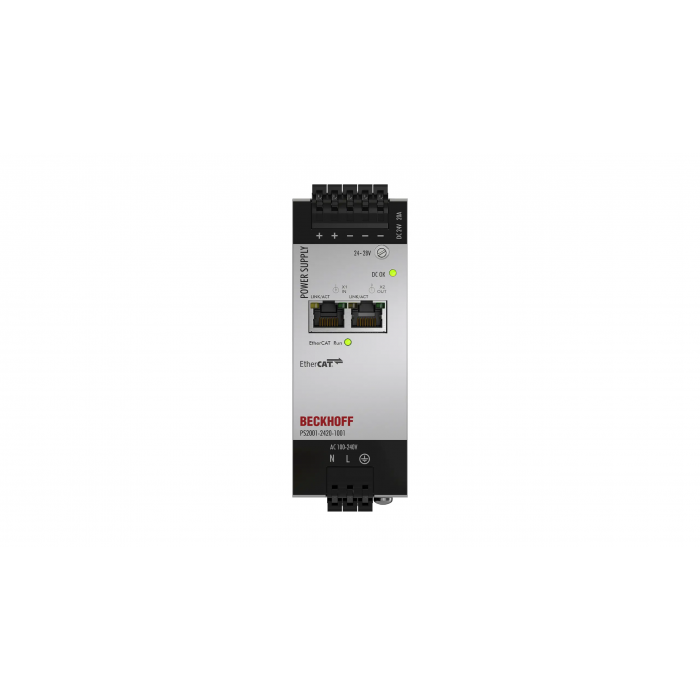

PS2001-2420-1001 Power supply PS2000
The power supply PS2001-2420-1001 is a single-phase, 24 V DC power supply with an integrated EtherCAT interface, an output current of 20 A and an output power of 480 W. On the input side, the device has a wide range input, a power factor correction (PFC) and an inrush current surge regulation. The output operates according to the UI characteristic curve and switches to safe hiccup mode in case of overload/short circuit.
Input voltage: AC 100…240 V, DC 110…150 V
Wide-range input: yes
Input current: typ. 2.23 A at 230 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 4.5 A peak at 230 V AC
Harmonic correction (PFC): active
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 20 A
Output: 480 W
Extra power: 20 % (continuously)
Precise fuse release: yes
DC OK LED: yes
Efficiency: approx. 95.6 %
Communication: EtherCAT
Bus interface: 2 x RJ45
Data transfer rates: 100 Mbit/s
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: max. 100 m (100BASE-TX)
Weight: approx. 830 g
Approvals/markings: CE
Protection rating: IP20
| SKU | PS2001-2420-1001 |
|---|
