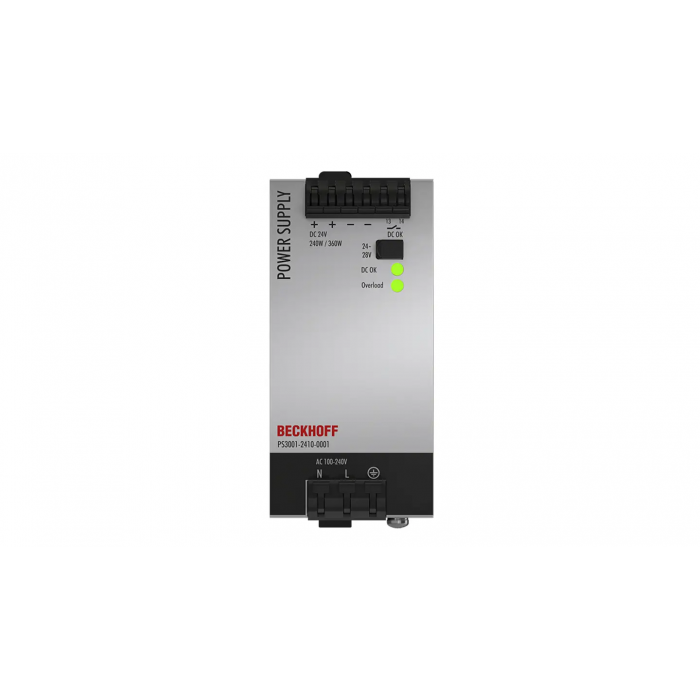

PS3001-2410-0001 Power supply PS3000
The power supply PS3001-2410-0001 is a 1-phase, 24 V DC power supply with an output current of 10 A and an output power of 240 W. On the input side, the device has a wide range input, an active power factor correction (PFC) and an inrush current surge regulation.
Input voltage: AC 100…240 V, DC 110…150 V
Wide-range input: yes
Input current: typ. 1.22 A at 230 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 7 A peak at 230 V AC
Harmonic correction (PFC): active
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 10 A
Output: 240 W
Outpout power for 4 s: 360 W
Extra power: 50 %/4 s
Precise fuse release: yes
DC OK LED: yes
Overload LED: yes
Efficiency: approx. 93.5 %
Operating temperature: -25…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 1200 g
Approvals/markings: CE, UL508
Protection rating: IP20
| SKU | PS3001-2410-0001 |
|---|
