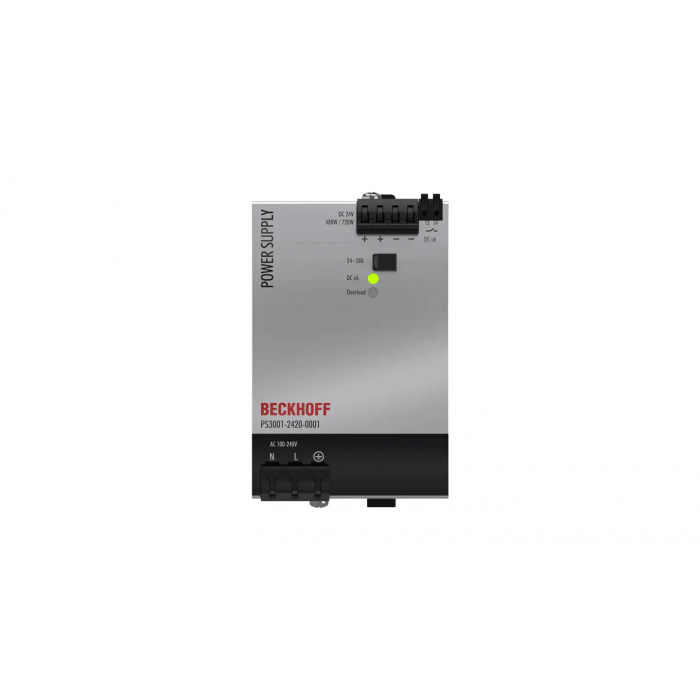

PS3001-2420-0001 Power supply PS3000
The power supply PS3001-2420-0001 is a 1-phase, 24 V DC power supply with an output current of 20 A and an output power of 480 W. On the input side, the device has a wide range input, an active power factor correction (PFC) and an inrush current surge regulation. The output operates according to the UI characteristic curve and switches to safe hiccup mode in case of overload/short circuit.
Input voltage: AC 100…240 V, DC 110…150 V
Wide-range input: yes
Input current: typ. 2.48 A at 230 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 7 A peak at 230 V AC
Harmonic correction (PFC): active
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 20 A
Output: 480 W
Outpout power for 4 s: 720 W
Extra power: 50 %/4 s
Precise fuse release: yes
DC OK LED: yes
Overload LED: yes
Efficiency: approx. 93.9 %
Operating temperature: -25…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 1200 g
Approvals/markings: CE, UL508, DNV GL
Protection rating: IP20
| SKU | PS3001-2420-0001 |
|---|
