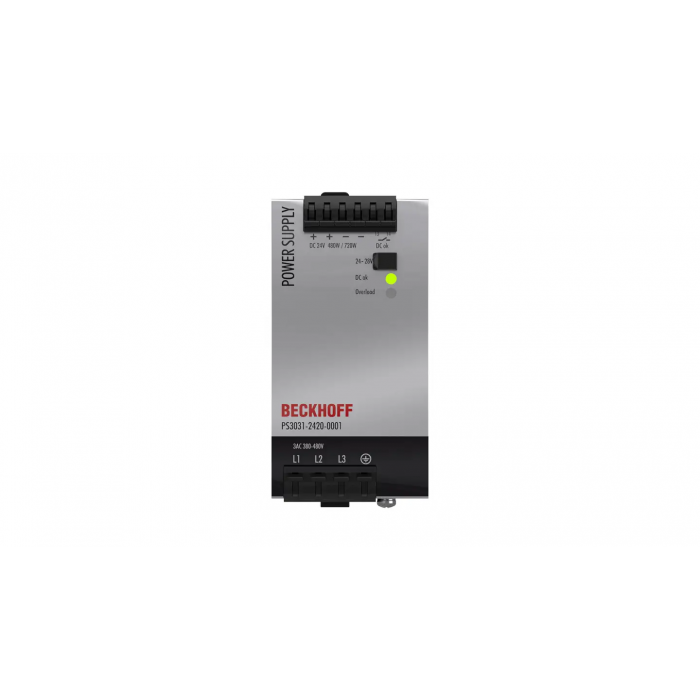

PS3031-2420-0001 Power supply PS3000
The power supply PS3031-2420-0001 is a 3-phase, 24 V DC power supply with an output current of 20 A and an output power of 480 W. On the input side, the device has a wide range input, an active power factor correction (PFC) and an inrush current surge regulation.
Input voltage: 3 AC 380…480 V
Wide-range input: yes
Input current: typ. 0.79 A at 400 V AC
Switch-on current limiter: yes
Mains frequency: 50…60 Hz
Starting current: typ. 3 A peak at 400 V AC
Harmonic correction (PFC): active
Output voltage: 24 V DC
Adjustment range: 24…28 V DC
Output current: 20 A
Output: 480 W
Outpout power for 4 s: 720 W
Extra power: 50 %/4 s
Precise fuse release: yes
DC OK LED: yes
Overload LED: yes
Efficiency: approx. 95 %
Operating temperature: -25…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 870 g
Approvals/markings: CE, UL508
Protection rating: IP20
| SKU | PS3031-2420-0001 |
|---|
