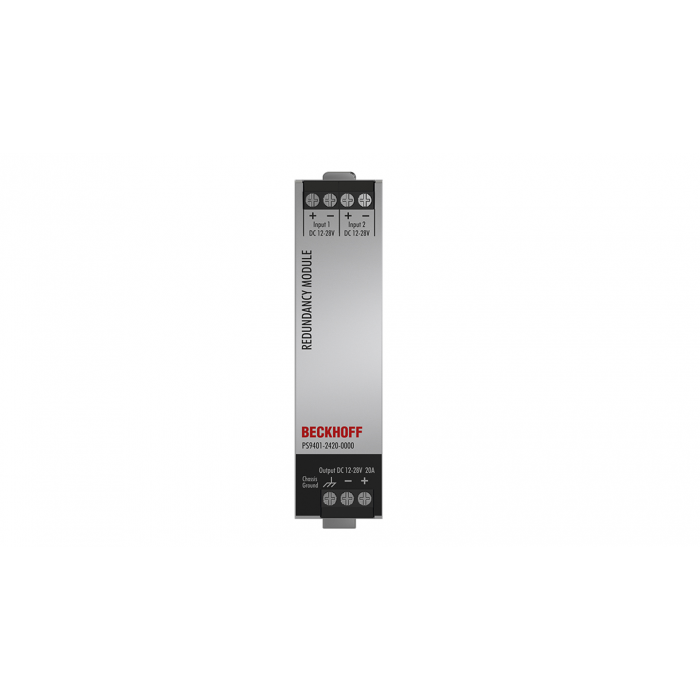

PS9401-2420-0000 MOSFET redundancy module PS9400
The PS9401-2420-0000 redundancy module is suitable for the setup of a redundant, fail-safe supply network. It is equipped with two inputs, to which two 10 A power supplies with 12 V DC or 24 V DC can be connected. The output can continuously conduct rated currents of up to 20 A. The redundancy module uses MOSFETs to decouple the two inputs; this reduces heat generation and the voltage drop between input and output.
Input voltage: DC 12…28 V
Input current: 2 x 0…10 A
Input current for 5 s: 2 x 0…16 A
Output current: 0…20 A
Output current 5 s: 20…32.5 A
Voltage drop input/output: typ. 60 mV; input 2 x 5 A, typ. 110 mV; input 2 x 10 A
Power loss: typ. 0.6 W; 24 V input: 2 x 5 A, typ. 2.0 W; 24 V input: 2 x 10 A
Operating temperature: -40…+70 °C
Shock resistance: conforms to EN 60068-2-27
Vibration resistance: conforms to EN 60068-2-6
Weight: approx. 250 g
Approvals/markings: CE, UL508, ATEX, IECEx, Class I Div2
Protection rating: IP20
| SKU | PS9401-2420-0000 |
|---|
