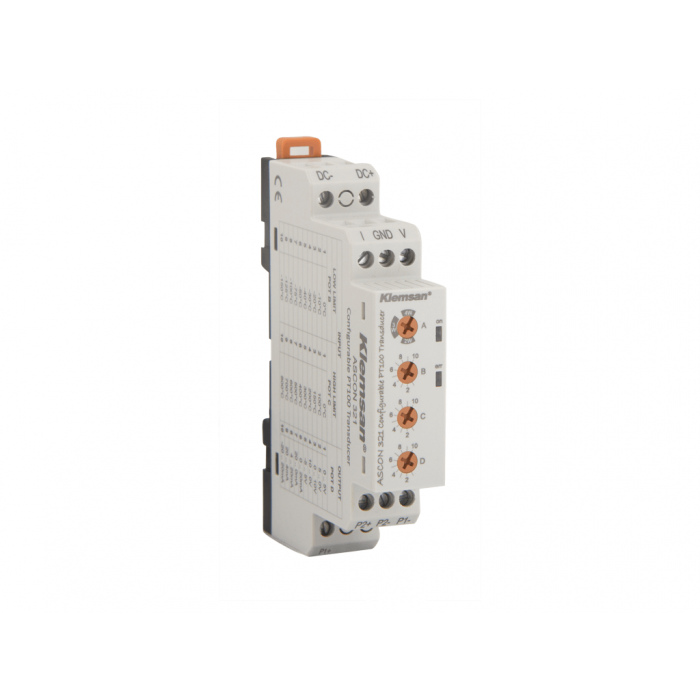

PT100 TEMPERATURE TRANSDUCER
Specifications:
- ASCON 321 PT100 converter (configurable)
- Casing Width (mm): 17,5
- Connections: Screw terminal
- Isolation: 3 way - 1,5 kV RMS
- Measurement Error: < 0.2% (Full Scale)
- Temperature Coefficient: ≤ 0.02%/°C
- Response Time: < 150ms
- Sensor Failure Indication: The situation of input signal is at least 10 % different than adjusted value.
- Protection class: IP20
- Mounting type: Rail Mounted
Technical Data:
Input:
- Sensor Type: PT100
- Connection Method: 2 wire or 3 wire or 4 wire.
- Temperature Measuring Range: -150°C +800°C Configurable
- Sensor Excitation Current: < 0.5Ma
Output:
- Output Signal: 0.5V, 0.20mA, 5.0V, 20.0mA, 0.10V, 4.20mA, 10.0V, 20.4mA, -5.5V, 20.20mA
- Max. Load: ≤ 600 Ω (Current İnput), ≥ 10K Ω (Voltage Output)
Supply Voltage:
- DC: 11-30V
Ambient Conditions:
- Operating Temperature: -20°C +60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
| Brand | Klemsan |
|---|
