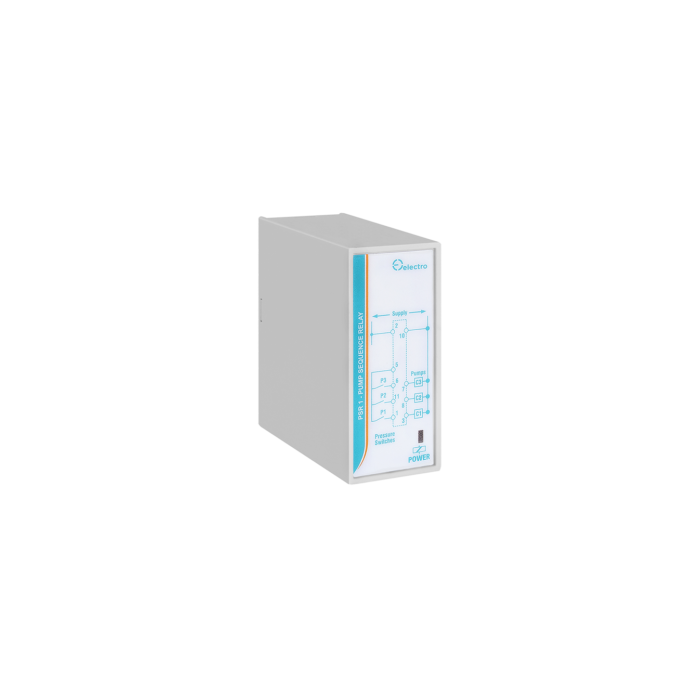

PUMP SEQUENCE CONTROLLER 230VAC
Sequence Relay for Pumps:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- The purpose of the pump sequence module is to maximize the wear on generators, compressors, and pumps.
- The first input saves this information in non-volatile memory and energizes the first pump.
- The following output will be energized by subsequent inputs. Its outputs and the number of outputs it produces match.
- The next in the series of outputs is engaged when the power is turned off or when there are no inputs activated and an input is activated.
- Since the same pump isn't turned on at the start of a sequence, this guarantees balanced pump usage.
Features:
- Three pump outputs that are generally open.
- Following a power outage, the next pump will always be remembered.
- Three inputs for voltage-free pressure switches that are typically open.
- DESCRIPTION: Pump sequencing relay
- CONTACT: 3 x 5A SPDT
- NUMBER OF CIRCUITS : 3
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
Brand | Electrodev |
---|
