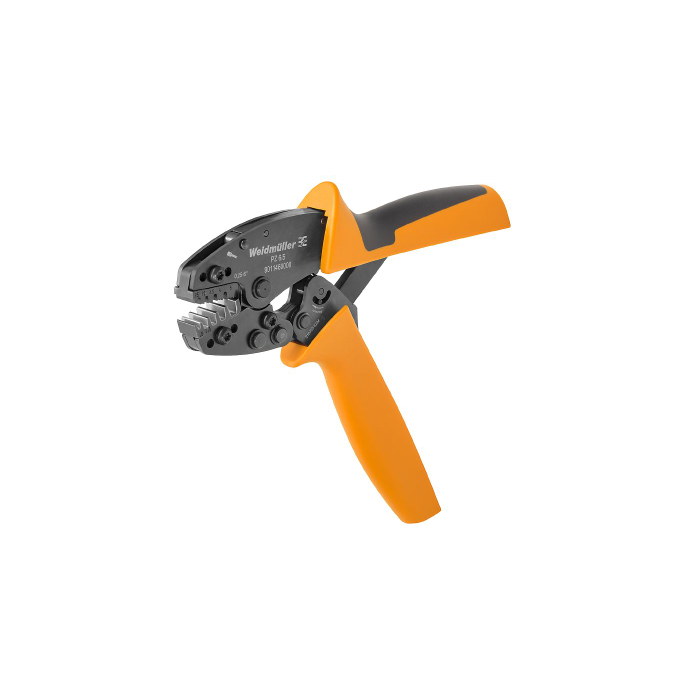

PZ 6/5
Wire end ferrule crimping instruments, with and without plastic collars:
- A ratchet ensures accurate crimping.
- In the event of an improper operation, select the Release option.
- Crimping tool for wire-end ferrules (0.25mm², 6mm²) and indent crimp.
Specifications dimensions and weights:
- Width: 200 mm.
- Width (inches): 7.874 inch.
- Net weight: 433 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
- Description of article: Crimping tool for wire end ferrules with/without plastic collar, 0.25 to 6 mm².
- Version: Mechanical, without interchangeable inserts.
Description of contact:
- Conductor cross-section, max.AWG: AWG 10.
- Conductor cross-section, min.AWG: AWG 24.
- Crimping range, max.: 6 mm².
- Crimping range, min.: 0.25 mm².
- Type of contact: Wire-end ferrules with/without plastic collars.
Tool data crimping:
- Crimping profile 5: 6 mm².
- Crimping type/profile: Trapezoidal indentation crimp.
- Wire end ferrules cross-section, max.: 6 mm².
- Wire end ferrules cross-section, min.: 0.25 mm².
| Brand | Weidmuller |
|---|
