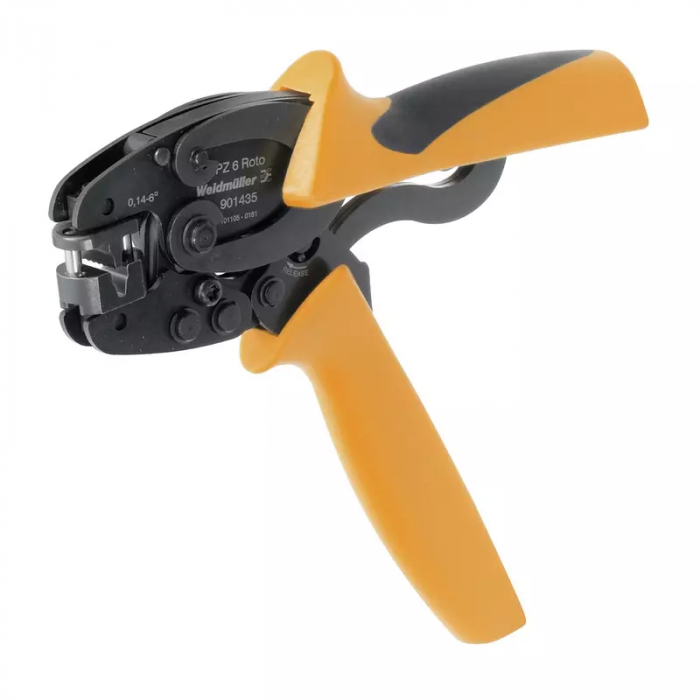

PZ 6 Roto
Wire end ferrule crimping instruments, with and without plastic collars:
- A ratchet ensures accurate crimping.
- In the event of an improper operation, select the Release option.
- Crimping tool for wire-end ferrules (0.14mm², 6mm²) and Trapezoidal crimp.
Specifications dimensions and weights:
- Depth: 22 mm.
- Depth (inches): 0.866 inch.
- Height: 80 mm.
- Height (inches): 3.15 inch.
- Width: 200 mm.
- Width (inches): 7.874 inch.
- Net weight: 427.28 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
- Description of article: (1) Crimping tool.
- Version: Mechanical, without interchangeable inserts.
Description of contact:
- Conductor cross-section, max. AWG: AWG 10.
- Conductor cross-section, min. AWG: AWG 26.
- Crimping range, max.: 6 mm².
- Crimping range, min.: 0.14 mm².
- Type of contact: Wire-end ferrules with/without plastic collars.
Tool data crimping:
- Crimping type/profile: Trapezoidal crimp.
- Wire end ferrules cross-section, max.: 6 mm².
- Wire end ferrules cross-section, min.: 0.14 mm².
| Brand | Weidmuller |
|---|
