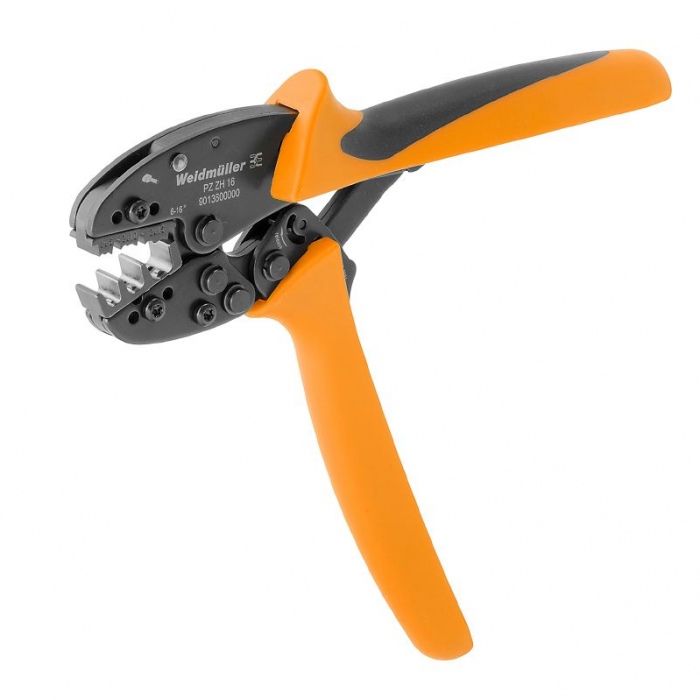

PZ ZH 16
Wire end ferrule crimping instruments, with and without plastic collars:
- A ratchet ensures accurate crimping.
- In the event of an improper operation, select the Release option.
- Crimping tool for wire-end ferrules (6mm², 16mm²) and indent crimp.
Specifications dimensions and weights:
- Width: 250 mm.
- Width (inches): 9.842 inch.
- Net weight: 674.78 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
- Description of article: (1)Crimping tool.
- Version: Mechanical, without interchangeable inserts.
Description of contact:
- Conductor cross-section, max.AWG: AWG 6.
- Conductor cross-section, min.AWG: AWG 10.
- Crimping range, max.: 16 mm².
- Crimping range, min.: 6 mm².
- Type of contact: Twin wire-end ferrules.
Tool data crimping:
- Crimping type/profile: Indent crimp.
- Wire end ferrules cross-section, max.: 16 mm².
- Wire end ferrules cross-section, min.: 6 mm².
| Brand | Weidmuller |
|---|
