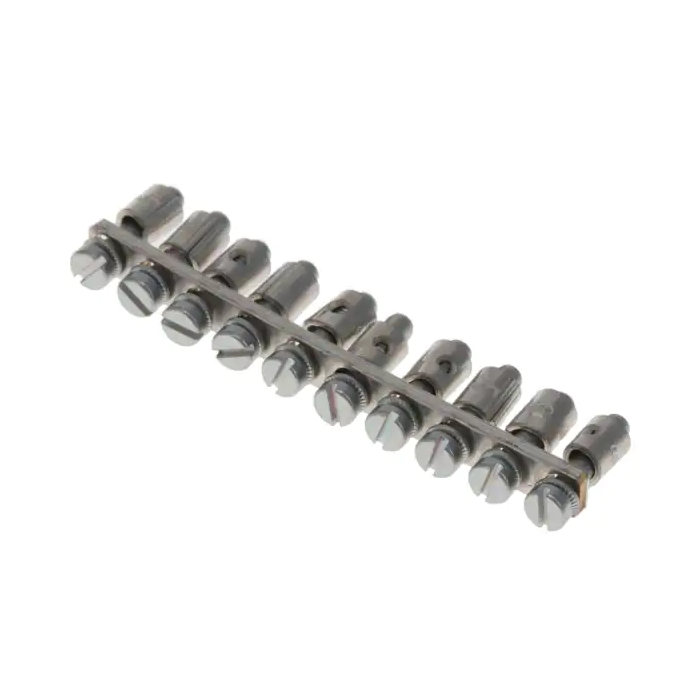

Q 10 AKZ1.5
Screwable cross-connections:
- Screwable cross-connections are easy to install and demount.
- Because of the large contact surface, even high currents can be conveyed with the highest contact reliability.
Specifications weights and dimensions:
- Depth: 11 mm.
- Height: 4 mm.
- Width: 49.9 mm.
- Net weight: 9.15 g.
Temperatures:
- Storage temperature: -25°C - 55°C.
Material data:
- Material: Cu Zn.
- Colour: grey.
System specifications:
- Version: for cross-connection link.
Additional technical data:
- Not an explosion-tested version.
- Installation advice: Mount directly.
- Type of fixing: when screwed in.
Cross-connector:
- 10 cross-connected terminals.
- Rated current, multi-pole: 24 A.
- Cross-connector type.
Dimensions:
- Pitch in mm (P): 5.1 mm.
General:
- Installation advice: Mount directly.
- Number of poles: 10.
Rating data:
- Rated current: 24 A.
| Brand | Weidmuller |
|---|
