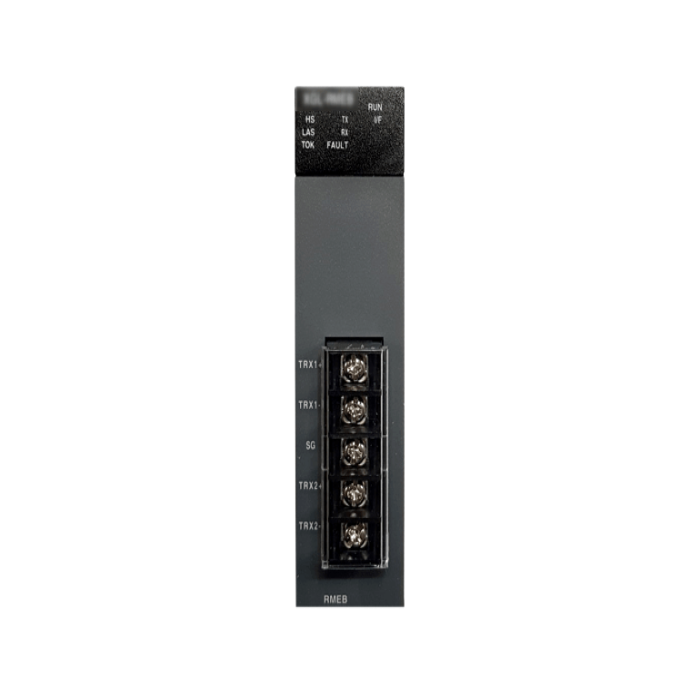

R-net Master 1Mbps TP Communication Module
Description:
- With LS Electric's specialized communication based on RS-422/48, high-speed 1 Mbps and long-distance 750 m communication are made possible.
- With XG5000, a user can access a variety of diagnostic features and CPU status data.
Specifications of R-net System:
- Communication speed: 1Mbps
- Communication distance: Max. 750m
- Available to use max. 6 repeaters (Up to 5.25Km)
- Network management using Auto-scan (Slave module information)
- Multi-drop network with smart I/O
- Network diagnosis and monitoring by XG5000
- Max. 63 stations of slave modules controlled by one master module
- XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK
- R-Net Modules
| Brand | LS Electric |
|---|
