RAIL MNT PANEL THERMOSTAT 1 NO
Description:

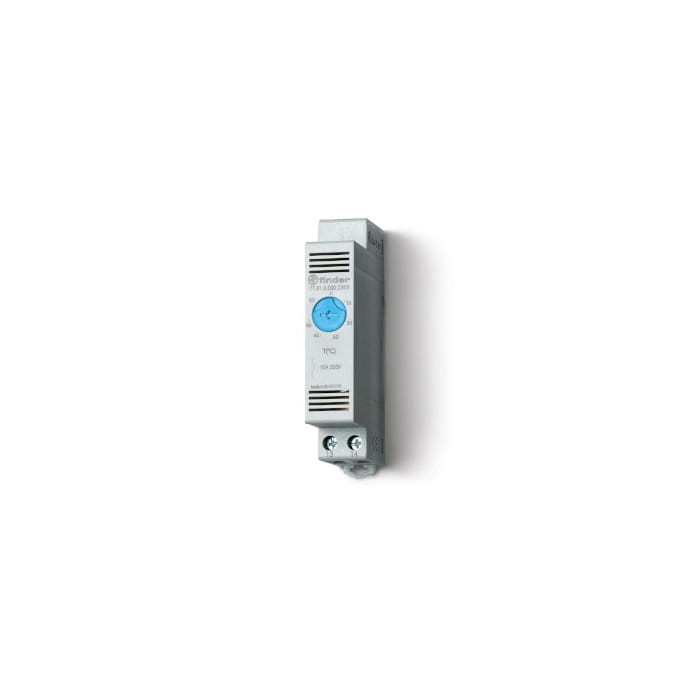

- Temperature regulation inside electrical enclosures is the purpose of the Electromechanica RAIL MNT PANEL THERMOSTAT 7T8100002303.
- It employs a thermostatic bimetal sensor with a snap-action feature to control HVAC systems and turn on signalling devices.
- This thermostat is perfect for a variety of applications because it is small and simple to install.
Specifications:
- Series: 7T series.
- Supply Voltage: 250V AC.
- Temperature Range: 0°C to +60°C.
- Configuration: 1 x NO (Normally Open).
- Mounting: DIN rail (EN 60715) mountable.
- Dimensions:
- Height: 86 mm.
- Width: 17.5 mm.
- Depth: 48 mm.
- Enclosure Material: PA66 self-extinguishing to UL 94V-0.
- Connection Type: IP20 protected screw terminals.
- Compliance:
- EN 60730-1.
- UL approved (UL873 and C22.2).
- Features:
- Compact, condensed dimensions (17.5 mm broad).
- Bimetal thermostatic sensor with snap action.
- Ideal for regulating the temperature within enclosures.
- Able could be used to turn on signalling devices or control ventilation and heating.
- By maintaining the ideal temperature inside your electrical enclosures, this thermostat will increase the dependability and lifespan of your systems.
| SKU | 7T8100002303 |
|---|---|
| Brand | Finder |
