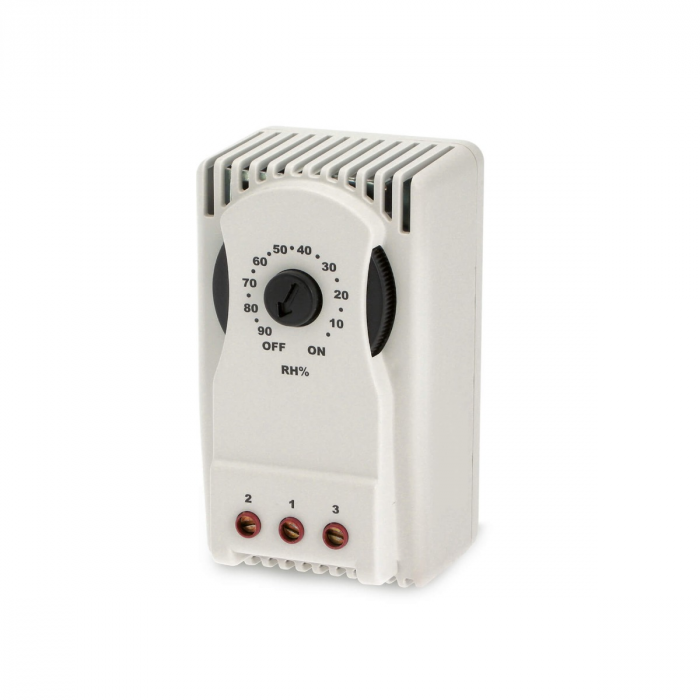

RAIL MOUNT MECHANICAL HYGROSTAT
Description:
- Inside electrical enclosures, the RAIL MOUNT MECHANICAL HYGROSTAT IGR35F is intended to automatically control humidity.
- When a predetermined relative humidity is surpassed, it activates a heater or fan to keep condensation off of electrical and electronic components.
- Corrosion is avoided and ideal working conditions are maintained.
Specifications:
- Series: IGR series.
- Supply Voltage: 120 - 240V AC.
- Humidity Range: 10% - 90% RH.
- Temperature Range:
- Operating: 50°F to 104°F (10°C to 40°C).
- Storage: -4°F to 122°F (-20°C to 50°C).
- Configuration: Changeover contact.
- Mounting: DIN rail mounting.
- Dimensions:
- Height: 86 mm.
- Width: 35 mm.
- Depth: 65 mm.
- Enclosure Material: PC/ABS UL94 V-0.
- Connection Type: Terminal block.
- Compliance:
- CE.
- cURus.
- UKCA.
- Features:
- Hygrostat in mechanical form with a changeover contact.
- Keeps humidity above the dew point to avoid condensation.
- Small and simple to set up.
- extended life (30,000 cycles).
- IP20 level of protection.
- By preserving a steady interior environment, this hygrostat is perfect for guaranteeing the dependability and lifespan of your electrical systems.
| Brand | Fandis |
|---|
