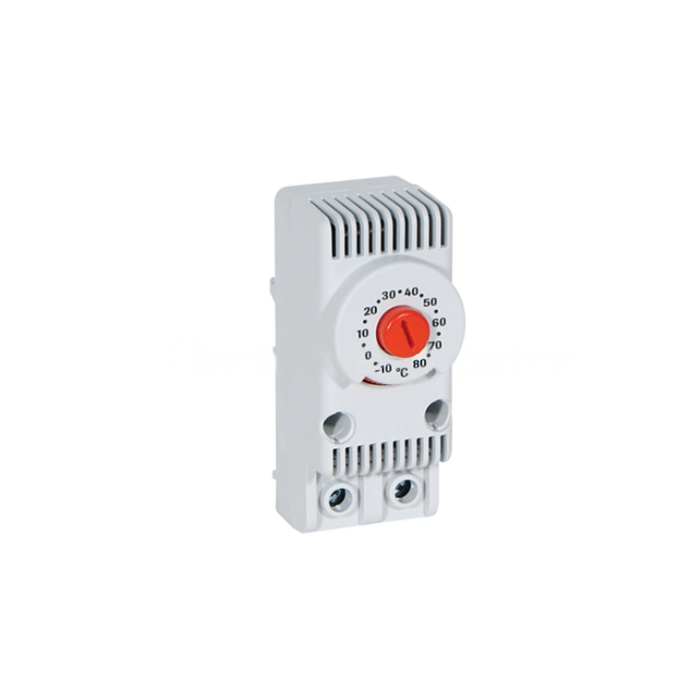

RAIL MOUNT PANEL THERMOSTAT 1xNC
Description:
- The TRT-10A230V-NC Electromechanica RAIL MOUNT PANEL THERMOSTAT is intended to regulate the temperature inside electrical enclosures.
- It employs a thermostatic bimetal sensor with a snap-action feature to control HVAC systems and turn on signalling devices.
- This thermostat is perfect for a variety of applications because it is small and simple to install.
Specifications:
- Series: TRT series.
- Supply Voltage: 110 - 250V AC.
- Temperature Range: -10°C to +80°C.
- Configuration: 1 x NC (Normally Closed).
- Mounting: DIN rail (EN 60715) mountable.
- Dimensions:
- Height: 86 mm.
- Width: 35 mm.
- Depth: 65 mm.
- Enclosure Material: PA66 self-extinguishing to UL 94V-0.
- Connection Type: Terminal block.
- Compliance:
- CE.
- cURus.
- UKCA.
- Features:
- Small, compact size.
- Bimetal thermostatic sensor with snap action.
- Ideal for regulating the temperature within enclosures.
- Able to be used for signalling device activation or for controlling ventilation and heating.
- IP20 level of protection.
- A lifespan of one hundred thousand cycles.
- By maintaining the ideal temperature inside your electrical enclosures, this thermostat will increase the dependability and lifespan of your systems.
| Brand | Fandis |
|---|
