RC MODULE 110-240VAC/DC
Socket modules in Series 99:
- Plug-in modules are useful add-ons for relays that provide timing, diode protection, RC circuits,
- LED indication (for observing relay status from a distance), bypass, and all socket-mounted plug-in relay features.
- The modules improve the functioning of the relay by only plugging them into designated sockets.
Depending on the chosen module, they can offer:
- Coil back emf suppression during switch-off LED indication to indicate whether the coil is activated.
- Placed across the coil terminals to provide protection from reverse polarization.
- Distressing leakage currents in the coil circuit are bypassed.

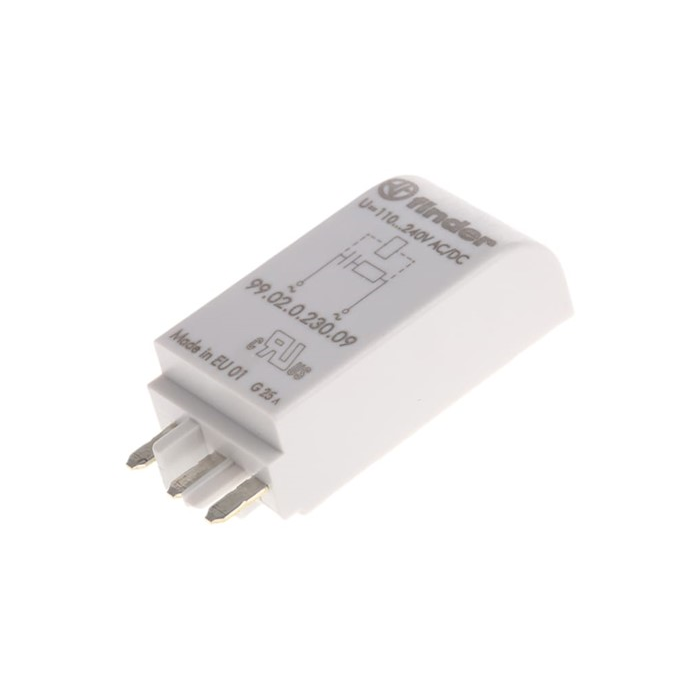

RC circuit module:
- RC circuit modules are used for AC and DC applications.
- The reverse voltage peaks of the coil are limited by the RC module to approximately 2.5 times the nominal supply voltage.
- Insignificant increase in release times.
- VOLTAGE:110 - 240 VAC/DC
- DESCRIPTION: Plug-in RC module of AC and DC lines
- LED COLOUR: Green
| Brand | Finder |
|---|
