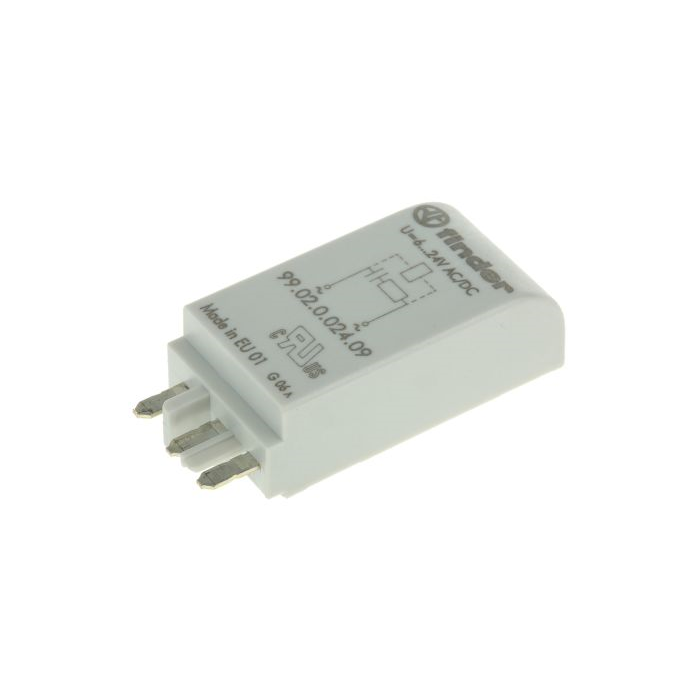

RC MODULE 6-24VAC/DC
Socket modules in Series 99:
- Plug-in modules are useful add-ons for relays that provide timing, diode protection, RC circuits,
- LED indication (for observing relay status from a distance), bypass, and all socket-mounted plug-in relay features.
- The modules improve the functioning of the relay by only plugging them into designated sockets.
Depending on the module used, they can offer:
- Coil back emf suppression during switch-off LED indication to indicate whether the coil is activated.
- Placed across the coil terminals to provide protection from reverse polarization.
- Distressing leakage currents in the coil circuit are bypassed.
RC circuit module:
- RC circuit modules are used for AC and DC applications.
- The reverse voltage peaks of the coil are limited by the RC module to approximately 2.5 times the nominal supply voltage.
- Insignificant increase in release times.
- VOLTAGE: 6 - 24 VAC/DC
- DESCRIPTION: Plug-in RC module of AC and DC lines
- LED COLOUR: Green
| Brand | Finder |
|---|
